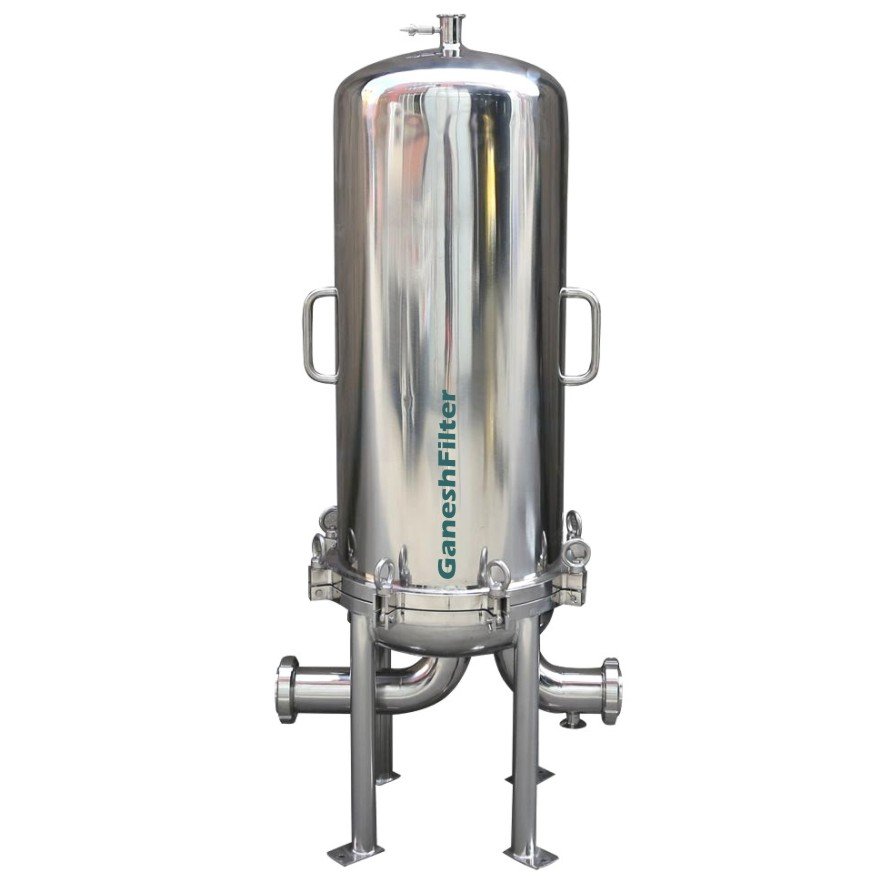

Multi Cartridge Filter Housing
Stainless Steel Sanitary Multi Cartridge Filter Housing is composed of a microporous membrane pleated filter element and a sanitary 304 or 316L stainless steel housing, SS sanitary cartridge housing is equipped with a multi cartridge filters. SS sanitary multi cartridge housing is connected by a quick-fit clamp or quick-opening ring bolt, which is convenient for loading and unloading the filter element and cleaning the filter.
The inner surface of sanitary multi cartridge filter housing is mirror polished (roughness Ra=0.3m). The inside and outside of SS sanitary multi cartridge housing are finely polished, and there is no dead corner. Sanitary cartridge housing is small size, light weight, easy to use and clean, large filtration area, low clogging rate, high filtering speed, good thermal dilute stability and chemical stability. Stainless steel sanitary cartridge housing is widely used in fine filtration and sterilization processes.
Features
- Reliability - All components of the bag filter housing are fully traceable. At Ganeshfilter, we can also tailor it to your specifications. The filter vessels are designed and manufactured following the Directive 2006/42/EC and in compliance with the EC standard.
- High-performance filtration - The path through which the fluid groes has been designed to be the shortest, facilitating cleaning. There is a wide variety of high-performance filter bags (ranging from less than one micron to several hundred microns) and the design of the filter vessel guarantees perfect sealing with the filter bags.
- Convenient and simple - The filter housing is designed to be easy-to-use. The tilting covers allow the filter bags to be changed quickly. The tripods are compact and ensure the stability of the filter vessel.
- Economical technology - Without automation and moving parts, the bag filter housing is cost-effective and economical to purchase. When compared to the flow rate, the use of a bag is often trivial compared to the volume of product filtered in the process. The bag filter is undeniably the simplest customizable filter on the market.
- Standard and custom filters - Ganeshfilter manufactures two types of bag filter housings. First, the standard vessels, which are produced in large quantities according to Ganeshfilter specifications. These vessels are not customizable but can be purchased at competitive prices. Secondly, the filter vessels tailored to our customer specifications. These filter housings are manufactured individually or in small series and the full list of options (detailed below) is possible.
Multi Cartridge Filter Housing
| Product Name | S.S Multy Cartridge Filter Housing. |
| Brand | Ganeshfilter |
| Housing Type | 3 to 12 bag |
| Filter Type | Catridge type |
| Cartridge MOC | PP,PTFE etc. |
| Housing Material | SS304, SS316L |
| Vent Vale/Drain Valve | SS304 |
| Finish Type | Polishing |
| Cartridge Length | 10", 20", 30", 40" |
| Cartridge Size | OD 2.5" pleated filter |
| No. of Cartridge | Multiple Cartridges |
| Filtration Rating | 0.5, 1 5, 10, 20, 50, 100, 200 to 500µ |
| Filtration Efficiency | 99% |
| Connection | Swing Bolts, Clamp |
| Inlet/Outlet | Flange, Thread , Clamp |
| Seal Material | EPDM, Silicon, Buna N, Viton |
| Cartridge End Cap | 222 O-ring, 226 O-ring |
| Max. Temperature | 130℃ |
| Design Pressure | 1.0 Mpa |
| Max. Pressure | 0.8 Mpa |
| Sterilization | Online sterilization 121±2℃ 30min/time |
| Size/Dimension | Standard or ( As per requirement). |
| Wall Thickness | 2 - 6MM |
| Usage Type | Liquid Filtration. |
Multi Cartridge Filter Housing
| Usage/Application: | It is widely used in filtration of Liquid such as ◼ Paints ◼ Lacquers ◼ Inks ◼ Varnish ◼ Resins ◼ Adhesives ◼ Oils ◼ Bitumen ◼ Fats ◼ Waxes ◼ Plasticizers ◼ PriBary Pharmaceuticals ◼ Food Ingredients ◼ Vegetable Oils ◼ Cooling and Heating Water ◼ Irrigation Systems ◼ Cutting Fluids/Oils ◼ High Viscosity Fluid |
