Ganeshfilter designed Debris filter to effectively prevent macro fouling by fibrous, course and Barine life debris (larger than the selected filter perforation size), by capturing and ejecting all debris in an optimal manner.Debris filter is necessary for the prevention of macro-fouling from debris in cooling water circuits. Debris filters are used in all types of applications where macro fouling of the condenser, heat exchanger, or cooling tower may occur and protection of downstream equipment is essential.
The debris filter is housed in a filter shell, flanged to mate with the cooling water lines.When debris buildup creates the critical predetermined differential pressure across the filter, the evacuation sequence is initiated. The valve on the debris evacuation pipe automatically opens and the debris evacuation aparatus is actuated. The differential pressure at the heads creates the vacuum by which all debris is evacuated. The filter continues to clean itself until the monitor indicates a clean condition exists. The rotation of the conduit then is automatically stopped and the valve on the evacuation pipe closed.
Features
Reliability - All components of the bag filter housing are fully traceable. At Ganeshfilter, we can also tailor it to your specifications. The filter vessels are designed and manufactured following the Directive 2006/42/EC and in compliance with the EC standard.
High-performance filtration - The path through which the fluid groes has been designed to be the shortest, facilitating cleaning. There is a wide variety of high-performance filter bags (ranging from less than one micron to several hundred microns) and the design of the filter vessel guarantees perfect sealing with the filter bags.
Convenient and simple - The filter housing is designed to be easy-to-use. The tilting covers allow the filter bags to be changed quickly. The tripods are compact and ensure the stability of the filter vessel.
Economical technology - Without automation and moving parts, the bag filter housing is cost-effective and economical to purchase. When compared to the flow rate, the use of a bag is often trivial compared to the volume of product filtered in the process. The bag filter is undeniably the simplest customizable filter on the market.
Standard and custom filters - Ganeshfilter manufactures two types of bag filter housings. First, the standard vessels, which are produced in large quantities according to Ganeshfilter specifications. These vessels are not customizable but can be purchased at competitive prices. Secondly, the filter vessels tailored to our customer specifications. These filter housings are manufactured individually or in small series and the full list of options (detailed below) is possible.

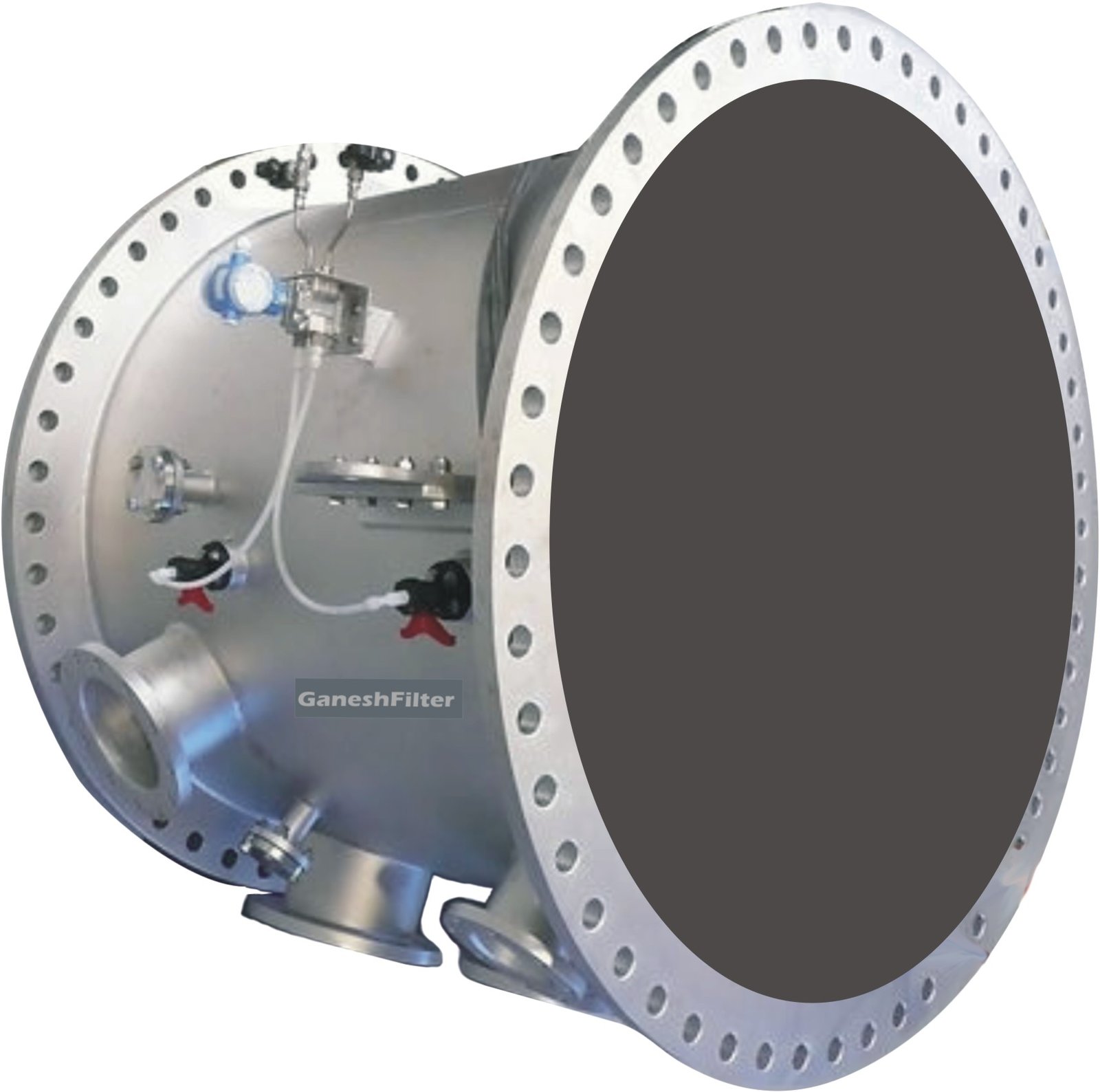

Debris filter
Product Name
Debris filter
Brand
Ganeshfilter
design operating pressure range
10 bar @ 60 Deg.C
Available capacity
2250 m3/hr to 56,500M3/hr
Pipe connection sizes
24 " to 80 " (600mm to 2000mm)
Filter element apertures:
1/8" to 3/8" (3mm to 10mm)
Material
Carbon steel with internally rubber lined or epoxy coated; exterior coating as required
Filter internals
316L Stainless steel and other specialized materials available
Usage/Application:
It is widely used in Applications ◼ Power plant raw water (fossil and nuclear)◼ Industrial raw water◼Petroleum refineries◼ Chemical plants◼ Steel mills◼ Irrigation for water distribution ◼ Potable water intakes◼ Water parks◼ Nozzle protection
