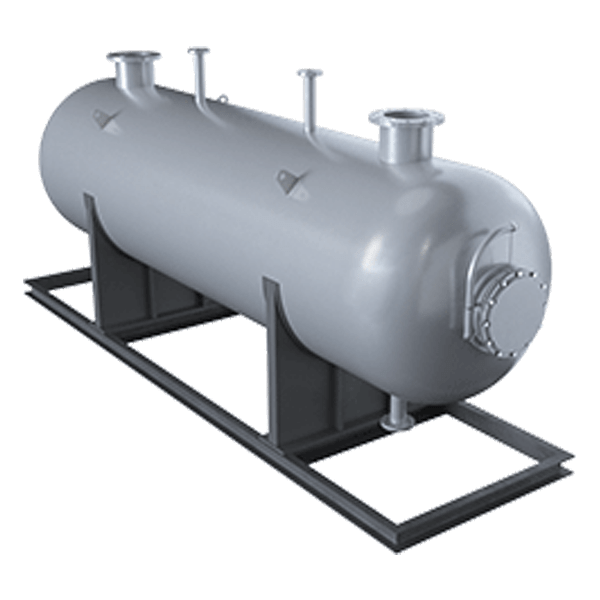

Flare knockout drums (FS) are used in flare systems for associated petroleum gas treatment intended for combustion in flare units at gas-producing, gas-condensate and gas processing enterprises,from drip moisture, mechanical impurities and other suspended particles.Knock out drums are used to slow down gasses and allow liquids to fall out of the gas stream. Knock out drums can be installed either in the waste gas header, or in the flare stack base itself.Knock out drums can be configured in either a horizontal, or vertical arrangement. When horizontal, a knock out drum will be constructed with one gas stream inlet, and two outlets, which can then be joined with a manifold. Another configuration that can be used is one inlet with a much larger outlet.
Features
Reliability - All components of the bag filter housing are fully traceable. At Ganeshfilter, we can also tailor it to your specifications. The filter vessels are designed and manufactured following the Directive 2006/42/EC and in compliance with the EC standard.
High-performance filtration - The path through which the fluid groes has been designed to be the shortest, facilitating cleaning. There is a wide variety of high-performance filter bags (ranging from less than one micron to several hundred microns) and the design of the filter vessel guarantees perfect sealing with the filter bags.
Convenient and simple - The filter housing is designed to be easy-to-use. The tilting covers allow the filter bags to be changed quickly. The tripods are compact and ensure the stability of the filter vessel.
Economical technology - Without automation and moving parts, the bag filter housing is cost-effective and economical to purchase. When compared to the flow rate, the use of a bag is often trivial compared to the volume of product filtered in the process. The bag filter is undeniably the simplest customizable filter on the market.
Standard and custom filters - Ganeshfilter manufactures two types of bag filter housings. First, the standard vessels, which are produced in large quantities according to Ganeshfilter specifications. These vessels are not customizable but can be purchased at competitive prices. Secondly, the filter vessels tailored to our customer specifications. These filter housings are manufactured individually or in small series and the full list of options (detailed below) is possible.
Knockout drum
Product Name
Flare Knockout Drums
Brand
Ganeshfilter
operating product
Non-corrosive natural gas (H2S content up to 0.001%)
Highly corrosive natural gas(CO2 content up to 70%)
hydrocarbon condensate
water
corrosion inhibitor
methanol
volume, m3
4.0-200.0
vessel type
according ASME Section VIII Div. 1
product capacity, nm3/day
up to 2200
pressure, MPa
up to 4.0
Shell temperature,℃
up to +150
operating product temperature,℃
from -50 to +50
operating temperature,℃
from -60 to +50
purification efficiency, %
99
Material
SA516 Grade 70 carbon steel, and the forge fittings are fabricated from SA105 carbon steel
structural design
with thermal treatment/without
with heat insulation/without
with heat-exchanging device/without
seismicity, points
up to 6
projected service life, years
12
Knockout drum
Application
◼ Gas pipelines◼Gas field treatments◼Metering & regulating stations◼Petrochemical plants◼Gas processing plants◼Chemical processing plants
