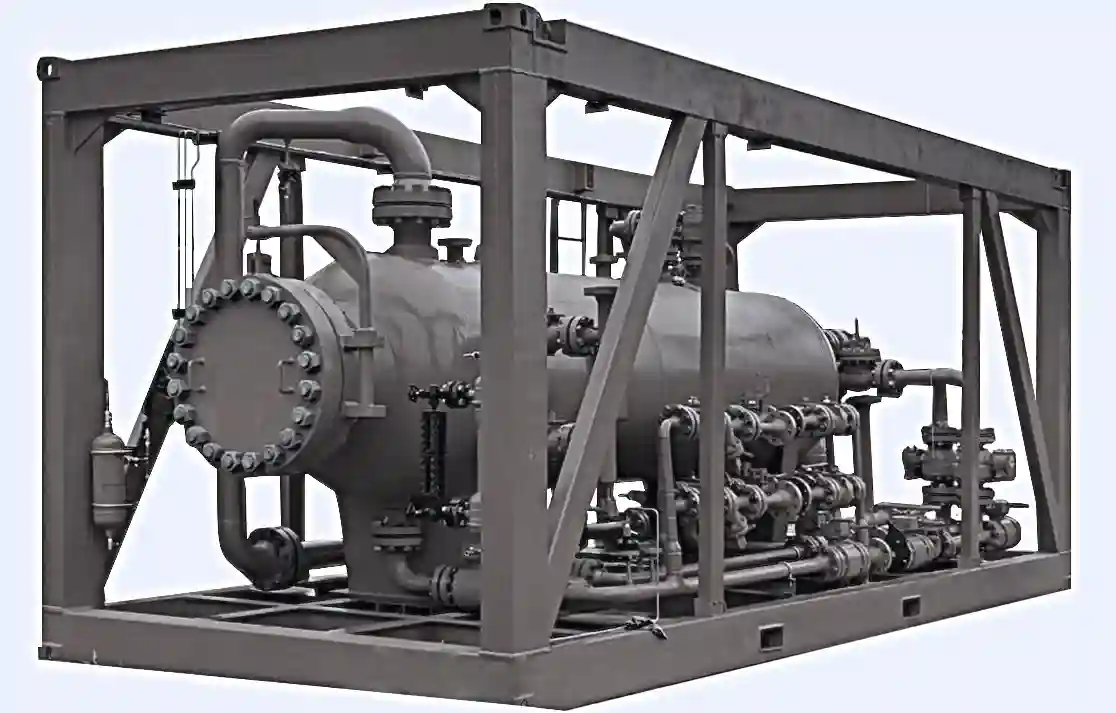

Two phase separator
The primary function of Two phase separator extracts liquids from natural gas. They are available in vertical, horizontal, and spherical configurations. Two-phase separators are extensively used in onshore or offshore oil and gas facilities and petrochemical applications.Two-phase separators are widely used for liquid-liquid or solid-liquid separation at processing facilities.
Two-stage separators have the same basic operating principle as three-phase systems but can only separate oil and gas mixtures. Like a three-phase system, it can be oriented as a horizontal two-phase separator or vertical two-phase separator. Due to their compact nature, vertical two-phase separators can only accommodate smaller volumes of fluid that require shorter residence times.
Features
- Reliability - All components of the bag filter housing are fully traceable. At Ganeshfilter, we can also tailor it to your specifications. The filter vessels are designed and manufactured following the Directive 2006/42/EC and in compliance with the EC standard.
- High-performance filtration - The path through which the fluid groes has been designed to be the shortest, facilitating cleaning. There is a wide variety of high-performance filter bags (ranging from less than one micron to several hundred microns) and the design of the filter vessel guarantees perfect sealing with the filter bags.
- Convenient and simple - The filter housing is designed to be easy-to-use. The tilting covers allow the filter bags to be changed quickly. The tripods are compact and ensure the stability of the filter vessel.
- Economical technology - Without automation and moving parts, the bag filter housing is cost-effective and economical to purchase. When compared to the flow rate, the use of a bag is often trivial compared to the volume of product filtered in the process. The bag filter is undeniably the simplest customizable filter on the market.
- Standard and custom filters - Ganeshfilter manufactures two types of bag filter housings. First, the standard vessels, which are produced in large quantities according to Ganeshfilter specifications. These vessels are not customizable but can be purchased at competitive prices. Secondly, the filter vessels tailored to our customer specifications. These filter housings are manufactured individually or in small series and the full list of options (detailed below) is possible.
Two phase separator
| Product Name | Two Phase Separator |
| Brand | Ganeshfilter |
| Gas flowrate: | 10-75 MMSCFD |
| Separator Vessel Length (S/S): | 6-18 ft |
| Vessel diameter: | 24" to 48" diameter-other custom sizes available |
| Standard Design Pressures: | 1440 psig on 42" vessel, 2000 psig on 30" vessel |
| Maximum Design Temperature: | 200℉ (93℃) on 30", 125℉ (52℃) on 42" |
| Minimum Design Temperature: | -20℉ (-29℃) on 30", -10º F (-23℃) on 42" |
| Material of Construction: | ◼ Shell - SA-516-70 ◼Elliptical Heads - SA-516-70◼Nozzles - SA-105, SA-350-LF2 ◼Drag Skid - A572 GR-50, A500 GR-B,◼Structural components - SA516-70, A36 |
| Applicable Standards: | ◼ASME Section VIII, Division 1◼NACE MR0175◼ANSI B31.3 Class M (H2S)◼API 12J◼Class I Division I (UL, Exp)◼Lethal Service (H2S)◼Certificates of Conformance |
| Non-destructive Test (NDT): | ◼Radiography ◼Magnetic Particle Examination ◼ Liquid Penetrant Examination ◼ Ultrasonic Examination◼ Brinell Hardness◼ Charpy Impact |
| Mechanical Specifications: | ||||||
| External Connections: | Inlet | Gas Outlet | Oil Outlet | Water Outlet | Trash | |
| 30" | 3" | 3" | 2" | 2" | 2" | |
| 42" | 3" | 3" | 2" | 2" | 2" | |
| Level and Flow Monitoring: | ||
| 30" | 42" | |
| Meter Run(s) | 4" | 6" and 4" |
| Sight Glasses | Oil and Water | Oil and Water |
| Vessel misc.(unless otherwise specified, all vessel connections are ANSI 900 raised face flanges) | ||
| 30" | 42" | |
| Clean outs | 1 - 4" | 2 - 6" |
| Inspection | 1 - 6" | 1 - 8" |
| Washout-Inlet Head | 1 - 6" | 1 - 6" |
| Washout-Outlet Head: | 1-6" | : |
| Manway: | None | 1-18" |
| Pressure Safety Valve(PSV): | 2-3" | 2-3" |
| Liquid Level Controls | 2-2"(External) | 2-2" (External) |
| Coating Options: | Sandblast: commercial, near white and white metal SSPC-SP Codes Available, Paint: 2 & 3 coat corrosion resistant | |
| Application | ◼ Gas pipelines◼Gas field treatments◼Metering & regulating stations◼Petrochemical plants◼Gas processing plants◼Chemical processing plants | |
| Working Media | ◼Natural gas◼Methyl Chloride ◼Methane ◼Hydrogen ◼Propane ◼Propylene◼Helium ◼Halocarbons◼Ethylene ◼Ethane ◼Carbon Monoxide◼Carbon Dioxide ◼Ammonia ◼Biogas ◼Air | |
| Application | |||
| Gas pipelines | Gas field treatments | Petrochemical plants | |
| Gas processing plants | Metering & regulating stations | Chemical processing plants | |
| Working Media | |||
| Natural gas | Methyl Chloride | Methane | Hydrogen |
| Propane | Propylene | Helium | Halocarbons |
| Ethylene | Ethane | Carbon Monoxide | Carbon Dioxide |
| Ammonia | Biogas | Air |
