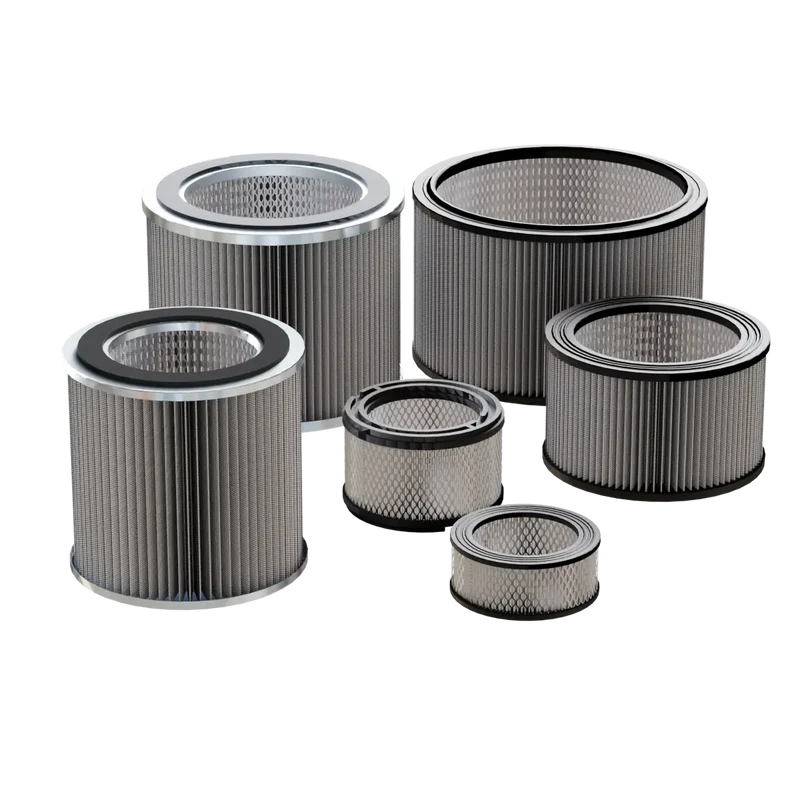

These Suction filters can be mounted on the intake side of a compressor to protect the pump against: dust, powders, chips etc from the atmospheric air. The filters consists of a steel housing. Quick changing of cartridges is possible.
These suction cum Silencer filter is a heavy duty compact design suitable for use on blowers, engines and air compressors.
Features
Reliability - All components of the bag filter housing are fully traceable. At Ganeshfilter, we can also tailor it to your specifications. The filter vessels are designed and manufactured following the Directive 2006/42/EC and in compliance with the EC standard.
High-performance filtration - The path through which the fluid groes has been designed to be the shortest, facilitating cleaning. There is a wide variety of high-performance filter bags (ranging from less than one micron to several hundred microns) and the design of the filter vessel guarantees perfect sealing with the filter bags.
Convenient and simple - The filter housing is designed to be easy-to-use. The tilting covers allow the filter bags to be changed quickly. The tripods are compact and ensure the stability of the filter vessel.
Economical technology - Without automation and moving parts, the bag filter housing is cost-effective and economical to purchase. When compared to the flow rate, the use of a bag is often trivial compared to the volume of product filtered in the process. The bag filter is undeniably the simplest customizable filter on the market.
Standard and custom filters - Ganeshfilter manufactures two types of bag filter housings. First, the standard vessels, which are produced in large quantities according to Ganeshfilter specifications. These vessels are not customizable but can be purchased at competitive prices. Secondly, the filter vessels tailored to our customer specifications. These filter housings are manufactured individually or in small series and the full list of options (detailed below) is possible.
Blower suction filter
MODEL
Flow rate
End Conn.
Type.
Dimensions in mm
Weight
SCFM
In / Out
A
B
C
D
Kg
BS15
15
1/2"
BSP
8.00
3.15
6.00
6.50
7.10
BS20
22
3/4"
BSP
8.00
3.15
6.00
6.50
7.10
BS25
35
1"
BSP
8.00
3.15
6.50
6.50
7.10
BS32
62
1 1/4"
BSP
9.00
3.50
6.50
3.5
10.0
BS40
78
1 1/2"
BSP
9.00
3.50
6.50
3.50
10.0
BS50
125
2"
BSP
9.00
3.50
6.50
3.5
10.5
BS65
195
2 1/2"
BSP
13.50
6.75
10.50
7.50
17.00
BS75
275
3"
BSP
13.50
6.75
10.50
7.50
18.50
BS75
380
3 1/2"
BSP
13.50
6.75
10.50
7.50
19.50
BS100
500
4"
FL
13.50
6.75
10.50
10.50
21.00
BS125
750
5"
FL
13.50
6.75
10.50
10.50
22.00
BS150
1150
6"
FL
18.00
9.50
14.50
13.50
32.00
BS200
2250
8"
FL
20.00
18.00
14.00
22.00
40.00
BS250
3100
10"
FL
24.00
12.00
18.00
15.50
62.00
BS300
4250
12"
FL
24.50
11.50
18.00
15.50
70.00
BS350
5750
14"
FL
30.50
15.5
24.50
20.00
110.00
BS400
7750
16"
FL
30.50
15.50
24.50
20.00
115.00
Inlet/Outlet connection
Sizes 1/2" to 3 1/2" - available with BSP (F) threaded.Optional in NPTF thread
Sizes 4" to 16" - available with ANSI B16.5 with 150# ANSI standard plate flanges
All models have a 1/8" BSP tap for installation of a gauge to monitor pressure drop
All models are available in Black,Blue and Grey colours
Usage/Application:
◼Rotary Screw Compressors ◼Piston Compressors ◼ Centrifugal Air Compressors ◼ Vacuum Systems
Blower suction filter
Usage/Application:
◼Rotary Screw Compressors ◼Piston Compressors ◼ Centrifugal Air Compressors ◼ Vacuum Systems
