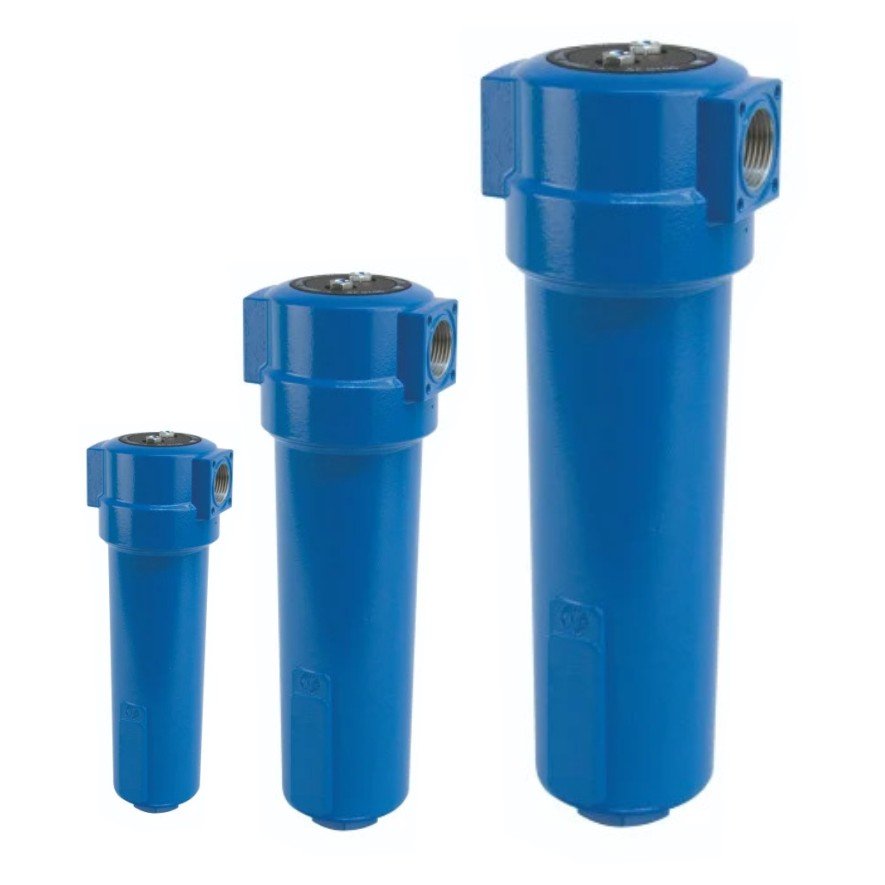

Compressed air filter

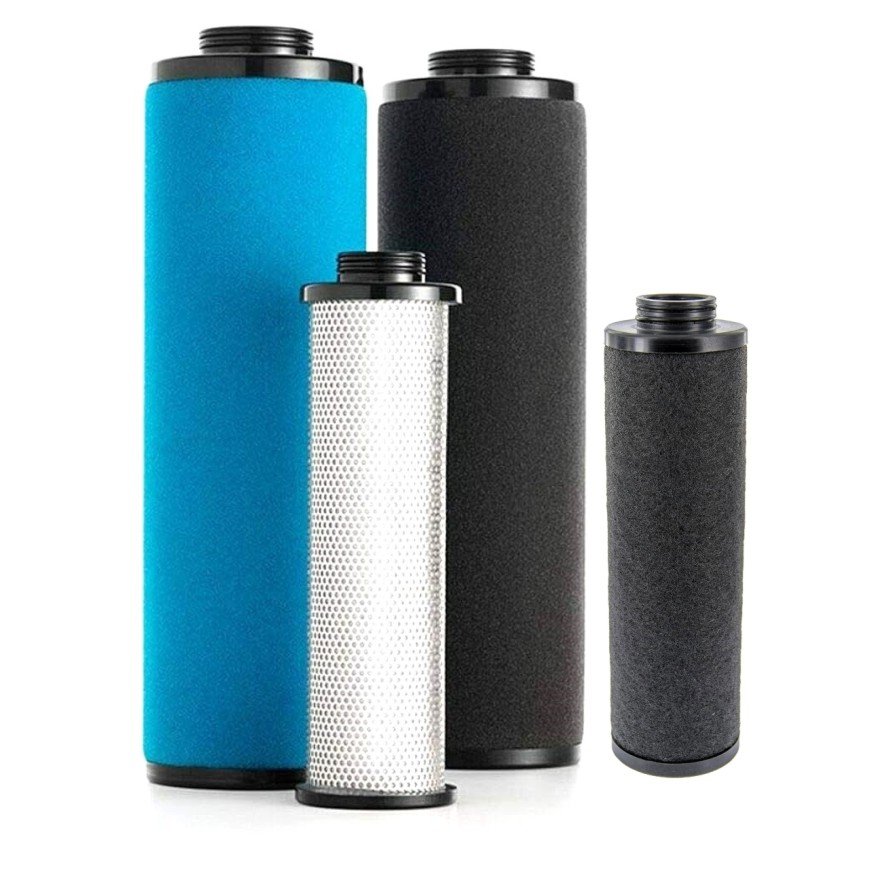

Coalescing Compressed Air Filters feature a redesigned housing and a step change in element performance making it one of the most energy efficient filter housings available on the Barket today. Airborne particles, water vapour, microbes, and chemical gases enter compressors. After compression has taken place these contaminants become concentrated and more destructive. Compressed air quality is essential to all modern production facilities.
Compressed Air Filter Housings, often referred to as line filters, are used to remove these contaminates from compressed air. Clean and dry air protects the compressed air system, reduces maintenance costs and increases finished product quality.
This comprehensive range of particulate filters deliver exceptional results in particle retention of up to 99.999%.
Features
- Reliability - All components of the bag filter housing are fully traceable. At Ganeshfilter, we can also tailor it to your specifications. The filter vessels are designed and manufactured following the Directive 2006/42/EC and in compliance with the EC standard.
- High-performance filtration - The path through which the fluid groes has been designed to be the shortest, facilitating cleaning. There is a wide variety of high-performance filter bags (ranging from less than one micron to several hundred microns) and the design of the filter vessel guarantees perfect sealing with the filter bags.
- Convenient and simple - The filter housing is designed to be easy-to-use. The tilting covers allow the filter bags to be changed quickly. The tripods are compact and ensure the stability of the filter vessel.
- Economical technology - Without automation and moving parts, the bag filter housing is cost-effective and economical to purchase. When compared to the flow rate, the use of a bag is often trivial compared to the volume of product filtered in the process. The bag filter is undeniably the simplest customizable filter on the market.
- Standard and custom filters - Ganeshfilter manufactures two types of bag filter housings. First, the standard vessels, which are produced in large quantities according to Ganeshfilter specifications. These vessels are not customizable but can be purchased at competitive prices. Secondly, the filter vessels tailored to our customer specifications. These filter housings are manufactured individually or in small series and the full list of options (detailed below) is possible.
Compressed air filter
| MODEL | Flow rate | End Conn. | Dimensions in mm | Weight | |
|---|---|---|---|---|---|
| M3/hr | IN/Out | Height | Width | Kg | |
| GFA35 | 35 | 1/4" | 195 | 90 | 0.8 |
| GFA70 | 70 | 3/8" | 310 | 114 | 1.1 |
| GFA120 | 120 | 1/2" | 375 | 114 | 2.3 |
| GFA220 | 220 | 3/4" | 450 | 150 | 2.5 |
| GFA325 | 325 | 1" | 450 | 150 | 2.6 |
| GFA450 | 450 | 1 1/4" | 575 | 190 | 5.9 |
| GFA600 | 600 | 1 1/2" | 575 | 190 | 5.9 |
| GFA750 | 750 | 2" | 575 | 190 | 5.9 |
| GFA1100 | 1100 | 2" | 775 | 190 | 8.0 |
| BCH2900 | 2900 | 4" | 1380 | 480 | 22 |
| BCH4400 | 4450 | 4" | 1100 | 420 | 26 |
| BCH7500 | 7900 | 6" | 1525 | 485 | 32 |
| Operating Conditions | |||||
| Normal | Maximum | ||||
| Working Pressure | 7 to 12.5 Bar | 16 Bar | |||
| Inlet Temperature | 45°C | 60°C | |||
| Above flow rates are at 7 Bar,35 ℃ | |||||
Compressed air filter
| Usage/Application: | ◼ Instrument and Control Air ◼Process Control Instruments ◼ Textile Machines◼Machine tools ◼ Bearing air ◼ Air Motors and Heavy Air motor ◼ miniature◼Packaging machine ◼ Pneumatic cylinder ◼ Sensors in fluid technology ◼ Sand blasting unit ◼ Handling of food and beverages ◼ Semi conductor manufacturing ◼ Wind tunnels◼Pharmaceutical manufacturing ◼ Conveyance of hygroscopic products ◼ Paint spray and Powder coating |
