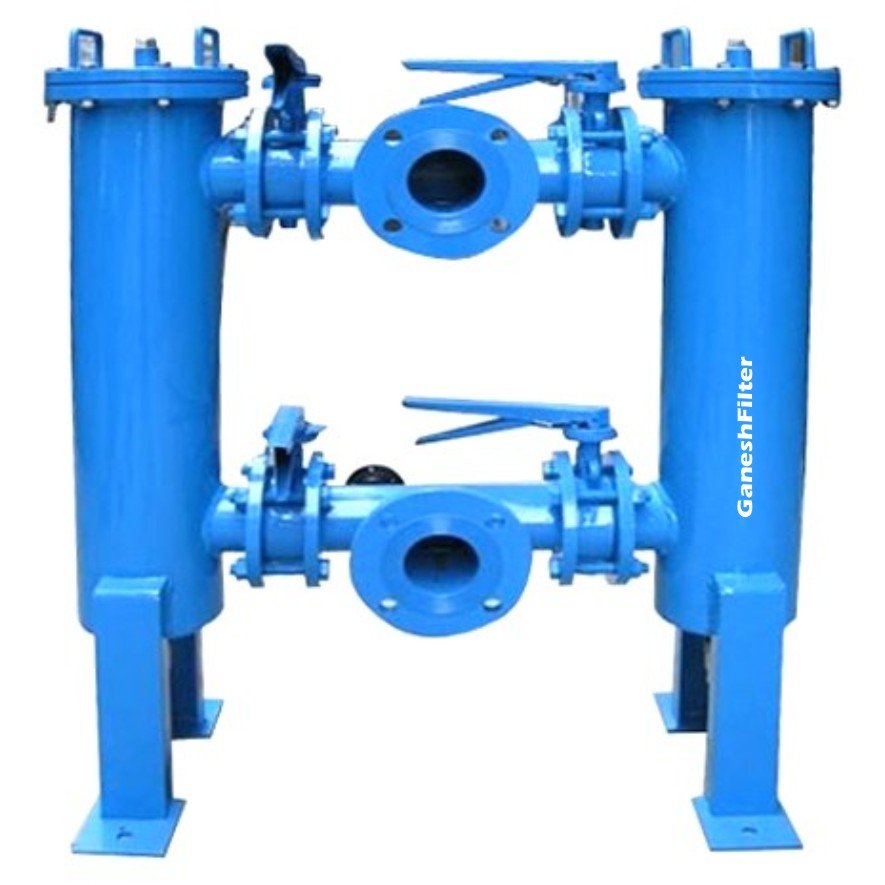

Duplex Basket strainer
Fabricated strainers are the ideal solution for removing solid particles from a liquid stream. Applications include protection from debris of pumps, meters, valves, nozzles and heat exchangers.Fabricated basket filters can also be duplexed to enable continuous operation. The system consists of two strainers " one duty and one standby " interconnecting pipework and gear operated butterfly valves.
When the maximum acceptable differential pressure is reached across the duty filter, the flow can be switched to the other filter housing without disruption to the filtration process. The filter not in use can then be cleaned and prepared for use again.
Features
- Reliability - All components of the bag filter housing are fully traceable. At Ganeshfilter, we can also tailor it to your specifications. The filter vessels are designed and manufactured following the Directive 2006/42/EC and in compliance with the EC standard.
- High-performance filtration - The path through which the fluid groes has been designed to be the shortest, facilitating cleaning. There is a wide variety of high-performance filter bags (ranging from less than one micron to several hundred microns) and the design of the filter vessel guarantees perfect sealing with the filter bags.
- Convenient and simple - The filter housing is designed to be easy-to-use. The tilting covers allow the filter bags to be changed quickly. The tripods are compact and ensure the stability of the filter vessel.
- Economical technology - Without automation and moving parts, the bag filter housing is cost-effective and economical to purchase. When compared to the flow rate, the use of a bag is often trivial compared to the volume of product filtered in the process. The bag filter is undeniably the simplest customizable filter on the market.
- Standard and custom filters - Ganeshfilter manufactures two types of bag filter housings. First, the standard vessels, which are produced in large quantities according to Ganeshfilter specifications. These vessels are not customizable but can be purchased at competitive prices. Secondly, the filter vessels tailored to our customer specifications. These filter housings are manufactured individually or in small series and the full list of options (detailed below) is possible.
Duplex Basket strainer
| Product Name | Dupplex Basket Strainer |
| Brand | Ganeshfilter |
| Liquid Flow Rate | 15LPM to 5000LPM |
| Line Size | 1" to 24" |
| Housing Type | Duplex Type with Butterfly, Ball valve or 6 port integral change over valve |
| Filter Type | Basket strainer |
| Body, M.O.C | Carbon steel/SS 304/ SS 316 |
| Filter,MOC | S.S 304/316 Mesh With Supported SS |
| Filtration Rating | 5,10, 20 , 25,50,100 upto 500 micron or according to your requirement |
| Filtration Efficiency | 99% related to Pore sizes |
| Design Standard | ASME,DIN and EN std. |
| Design Pressure | Std @ 8Bar ( available upto 400 Bar} |
| Operating Pressure | Std @ 6Bar ( available upto 325Bar ) |
| Temperature range | 20 ℃ to 200 ℃ |
| Size/Dimension | Standard or ( As per requirement) |
| Seal Type | O-ring or flat gasket. |
| Seal Material | Silicon,NBR, EPDM, Viton, PTFE. |
| Surface treatment | Carbon Steel models are painted and SS models are Mirror polishing or electrolytic polishing |
| Connections | Inlet/Outlet with vent and drain |
| Inlet/Outlet Connection | Thread,hoop,flange,TC Clamp |
| Lid/Cover Type | Swing Bolts, flange,etc |
| Accessories | Available with Differential Pressure Gauges |
| Usage Type | Water,Oil and other Liquids |
Duplex Basket strainer application
| Usage/Application: |
| Water,Oil and other Liquids |
