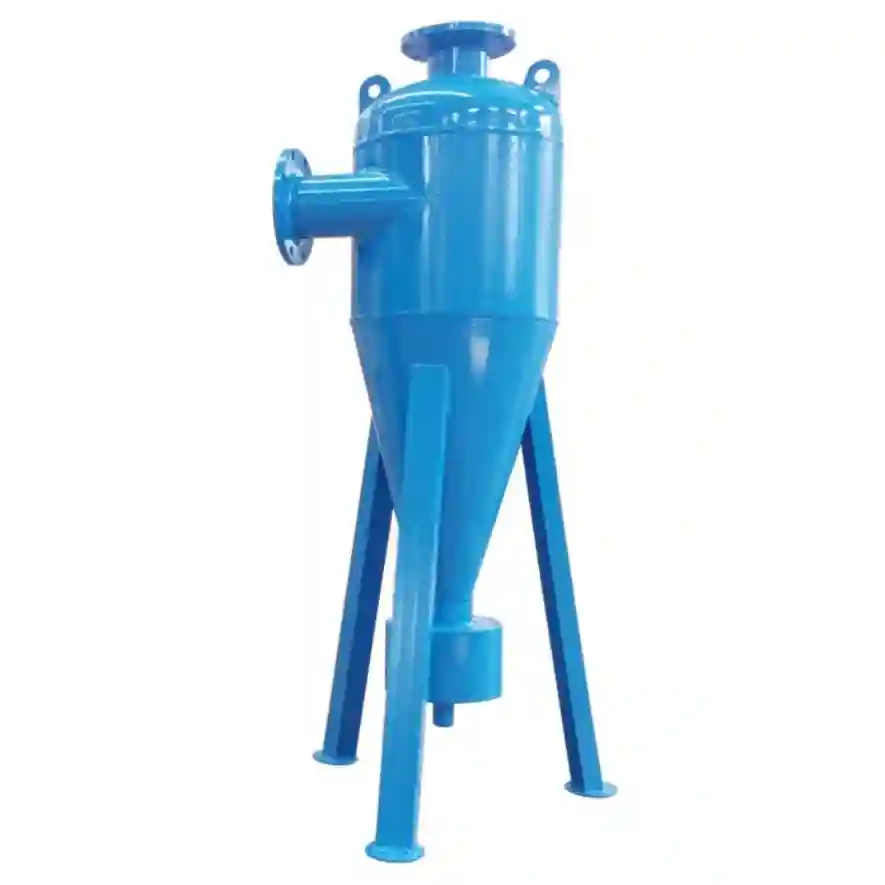

Hydrocyclone separator
Hydrocyclones are designed in simple structure to be used in the filtration of well water or other water sources containing sand, gravel or particles heavier than the water. Due to simple structure, it is more economic and easy to use relative to other sand separators. Hydrocyclones causes minimum pressure loss in filtration systems and therefore, they operate at maximum efficiency.Hydrocyclones, used as pre filtering element in filtration systems, are provided in single or modular forms which ensure manual or fully automatic cleaning process
In hydrocyclones, parts of dirt with a high specific gravity can be filtered out quite effectively. The liquid is admitted tangentially, which results in a centrifugal flow forcing the dirt parts towards the outer side of the filter. Thereupon the dirt is carried downwards to the collecting tank. The water thus freed from the heavy parts arrives at the centre of the spiral and leaves the filter at the top.
Features
- Reliability - All components of the bag filter housing are fully traceable. At Ganeshfilter, we can also tailor it to your specifications. The filter vessels are designed and manufactured following the Directive 2006/42/EC and in compliance with the EC standard.
- High-performance filtration - The path through which the fluid groes has been designed to be the shortest, facilitating cleaning. There is a wide variety of high-performance filter bags (ranging from less than one micron to several hundred microns) and the design of the filter vessel guarantees perfect sealing with the filter bags.
- Convenient and simple - The filter housing is designed to be easy-to-use. The tilting covers allow the filter bags to be changed quickly. The tripods are compact and ensure the stability of the filter vessel.
- Economical technology - Without automation and moving parts, the bag filter housing is cost-effective and economical to purchase. When compared to the flow rate, the use of a bag is often trivial compared to the volume of product filtered in the process. The bag filter is undeniably the simplest customizable filter on the market.
- Standard and custom filters - Ganeshfilter manufactures two types of bag filter housings. First, the standard vessels, which are produced in large quantities according to Ganeshfilter specifications. These vessels are not customizable but can be purchased at competitive prices. Secondly, the filter vessels tailored to our customer specifications. These filter housings are manufactured individually or in small series and the full list of options (detailed below) is possible.
Hydrocyclone separator
| Product Name | Hydrocyclone separator |
| Brand | Ganeshfilter |
| M.O.C | Carbon steel,SS304 / 316 |
| Inlet and Outlet | 3/4" to 8" inlet/outlet configurations available . |
| Flow capacity | 2m3.Hr to 400 M3/Hr |
| Max pressure | 10 Bar |
| Differential pressure | 0.2 to 0.5 Bar |
| Max.Operatitng Temperature | 55 ℃ |
| Cleaning Time | 4~8 seconds |
| Water consumption during cleaning | 1%-3% of water |
| Control model | Manual/Automatic |
| Usage | ◼Separation processes,◼Cooling water systems,◼Groundwater filtration,◼Vegetable washer,◼Fish processing industries |
Hydrocyclone separator
| Application | ◼ Gas pipelines◼Gas field treatments◼Metering & regulating stations◼Petrochemical plants◼Gas processing plants◼Chemical processing plants |
