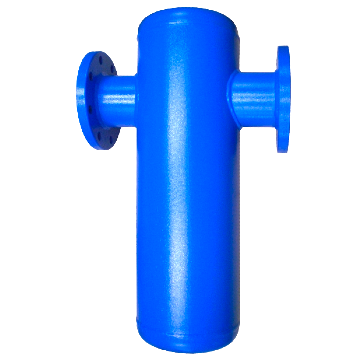

Moisture separator
The moisture-laden air from the after cooler enters the separator; it is forced through a diffuser that spins the air around the separator's body. Droplets of water are made to impinge on the separator wall by centrifugal force and they get collected at the base of the separator by gravity.
Features
- Reliability - All components of the bag filter housing are fully traceable. At Ganeshfilter, we can also tailor it to your specifications. The filter vessels are designed and manufactured following the Directive 2006/42/EC and in compliance with the EC standard.
- High-performance filtration - The path through which the fluid groes has been designed to be the shortest, facilitating cleaning. There is a wide variety of high-performance filter bags (ranging from less than one micron to several hundred microns) and the design of the filter vessel guarantees perfect sealing with the filter bags.
- Convenient and simple - The filter housing is designed to be easy-to-use. The tilting covers allow the filter bags to be changed quickly. The tripods are compact and ensure the stability of the filter vessel.
- Economical technology - Without automation and moving parts, the bag filter housing is cost-effective and economical to purchase. When compared to the flow rate, the use of a bag is often trivial compared to the volume of product filtered in the process. The bag filter is undeniably the simplest customizable filter on the market.
- Standard and custom filters - Ganeshfilter manufactures two types of bag filter housings. First, the standard vessels, which are produced in large quantities according to Ganeshfilter specifications. These vessels are not customizable but can be purchased at competitive prices. Secondly, the filter vessels tailored to our customer specifications. These filter housings are manufactured individually or in small series and the full list of options (detailed below) is possible.

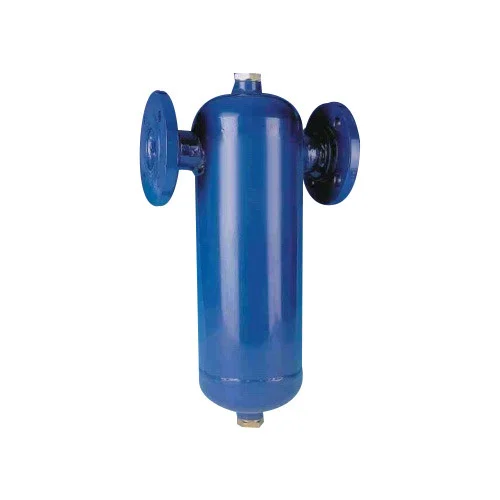

Moisture separator
| Product Name | Moisture separator |
| Brand | Ganeshfilter |
| Operating pressure range | 4 to 8 bar |
| design operating pressure range | 12 bar @ 125°C |
| Design Code | ASME Sec VIII DIV I |
| Available capacity | 382, 552, 1105, 1750, 2250, 3950, 5400, 5825, 8525, 10775, 12550 M3/Hr |
| Inlet / outlet sizes | 1", 1 1/2", 2", 3", 4", 6",8", 10", 12",14", |
| Inlet & outlet connections | BSP(F),NPT(F) and Flanged to ANSI B 16.5 - #150 |
| drain & vent connections | 3/8", 1/2",1", |
| Material | Carbon Steel or 1.4301 quality 304 stainless steel |
| Avilable colour | Std Grey,optional Blue,Red |
| Usage/Application: | It is widely used in ◼Rotary Screw Compressors ◼Piston Compressors ◼Centrifugal Air Compressors ◼Paper Mills ◼Flare Stacks ◼Gas Pipelines ◼Oil Refineries ◼Air Conditioning ◼Soil Vapor Extraction ◼Petrochemical ◼Refrigeration Systems ◼Compressor Systems ◼Geothermal Power Plants ◼Combined Cycle Power Plants ◼Natural Gas Processing ◼Air or Steam Line Moisture Separator |
Moisture separator
| Usage/Application: | It is widely used in ◼Rotary Screw Compressors ◼Piston Compressors ◼Centrifugal Air Compressors ◼Pneumatic applications |
