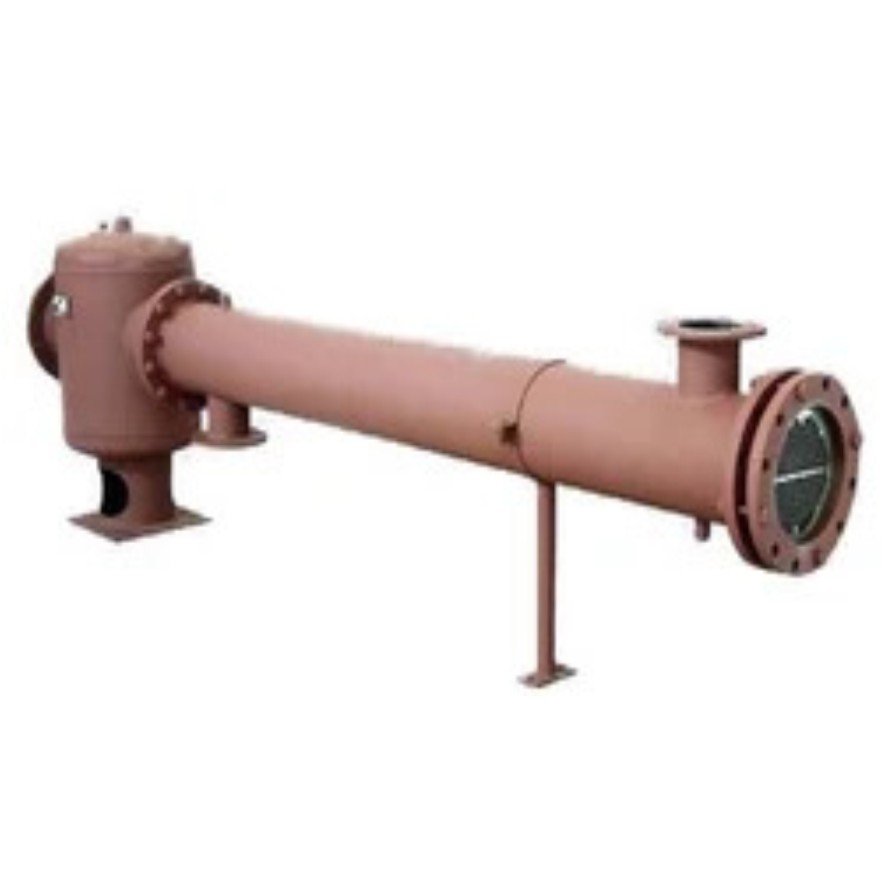

Water cooled After cooler is a Shell and Tube type Heat Exchanger which reduces the temperature of compressed Air and as a result Moisture from the Compressed Air is Separated. Cooling is done by circulating water from the opposite side of the Compressed Air inlet in Aftercooler.
Features
Reliability - All components of the bag filter housing are fully traceable. At Ganeshfilter, we can also tailor it to your specifications. The filter vessels are designed and manufactured following the Directive 2006/42/EC and in compliance with the EC standard.
High-performance filtration - The path through which the fluid groes has been designed to be the shortest, facilitating cleaning. There is a wide variety of high-performance filter bags (ranging from less than one micron to several hundred microns) and the design of the filter vessel guarantees perfect sealing with the filter bags.
Convenient and simple - The filter housing is designed to be easy-to-use. The tilting covers allow the filter bags to be changed quickly. The tripods are compact and ensure the stability of the filter vessel.
Economical technology - Without automation and moving parts, the bag filter housing is cost-effective and economical to purchase. When compared to the flow rate, the use of a bag is often trivial compared to the volume of product filtered in the process. The bag filter is undeniably the simplest customizable filter on the market.
Standard and custom filters - Ganeshfilter manufactures two types of bag filter housings. First, the standard vessels, which are produced in large quantities according to Ganeshfilter specifications. These vessels are not customizable but can be purchased at competitive prices. Secondly, the filter vessels tailored to our customer specifications. These filter housings are manufactured individually or in small series and the full list of options (detailed below) is possible.
Water Cooled aftercooler
MODEL
Air Flow
End Conn
Dimensions in mm
Water
Weight
M3/Hr
IN
OUT
A
B
C
IN/OUT
Kg
GWC100
180
1 1/2"
1 1/2"
1150
40
395
1/2"
20
GWC200
360
2 1/2"
1 1/2"
1375
40
395
1/2"
27
GWC300
480
2 1/2"
1 1/2"
1575
40
395
3/4"
29
GWC400
850
100NB
100NB
1875
70
725
1"
34
GWC500
1500
100NB
100NB
1875
70
725
1"
52
GWC600
2400
150NB
125NB
2100
70
725
1 1/4"
93
GWC700
3000
200NB
125NB
2150
240
775
1 1/4"
148
GWC800
4800
250NB
150NB
2050
275
850
1 1/4"
235
GWC900
6600
250NB
150NB
2050
275
1525
1 1/2"
290
GWC1000
9000
300NB
200NB
2200
350
950
2"
420
GWC1100
10800
350NB
200NB
2400
350
950
2"
490
GWC1200
12600
400NB
200NB
2600
350
950
2 1/2"
540
Operating Conditions
Ambient temperature
35 DegC min.
Working pressure
7 bar
Inlet air temperature (max)
BWC100-300 : 120 ℃
BWC400-1200 : 200℃
Cooling Water
IN-OUT water temperature
15-25 ℃
Water side pressure
3 bar (7 max.)
Inlet/Outlet connection
BSP / NPT / Flanged to ANSI B 16.5
Drain Connection
BSP(F) Optional NPTF
Drain Type
Manual drain,( Optional - No loss Drain )
Usage/Application:
◼Rotary Screw Compressors ◼Piston Compressors ◼ Centrifugal Air Compressors ◼ Vacuum Systems ◼ Blower Lube Oil Coolers ◼ Compressed Air Cooling ◼ Oil Coolers ◼Hydraulics ◼Approach/Trim Coolers
