Reliable Moisture Removal

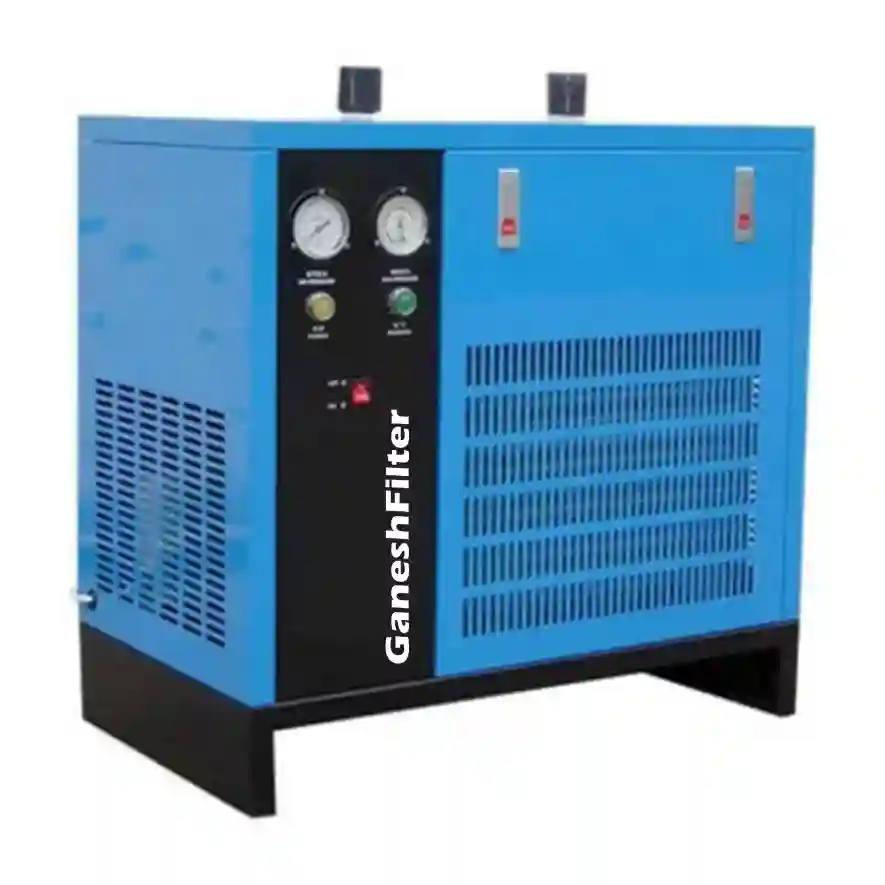

Ganesh Filter's Refrigerated Air Dryers are engineered to provide a stable pressure dew point, ensuring that your compressed air is free from water vapor, protecting downstream equipment from corrosion.
| Technical Feature | Specification |
|---|---|
| Dew Point | +3°C to +7°C |
| Max Working Pressure | 16 Bar |
| Refrigerant | R134a / R407C (Eco-Friendly) |
| Capacity Range | 20 CFM to 3000 CFM |
High-performance cycling & non-cycling air dryer models.
Eco-Friendly
Uses CFC-free refrigerants (R134a/R407C) that meet international environmental standards without compromising cooling efficiency.
Smart Controller
Integrated digital display for real-time monitoring of system status, pressure dew point, and automated drain valve control.
Low Pressure Drop
Advanced 3-in-1 heat exchanger design ensures maximum thermal transfer with minimum pressure loss, saving energy costs.
Optimizing Pneumatic Systems with a Heavy-Duty Refrigerated Air Dryer
Ambient atmospheric air naturally carries significant quantities of water vapor. When an industrial compressor pulls this air in and compresses it, the moisture density spikes rapidly, leading to aggressive liquid condensation within your downstream piping infrastructure. Installing a high-efficiency refrigerated air dryer system directly at the header output provides a highly controlled thermal barrier that protects your entire plant layout. By rapidly dropping the incoming compressed air temperature, these systems force hidden moisture vapor to rapidly condense into liquid droplets, which are then cleanly ejected from the line before they can reach your expensive pneumatic machinery.
Preventing Pipe Corrosion and Failure via Advanced Industrial Air Cooling
Unregulated water loading inside your fluid networks is a major catalyst for structural degradation, pipe scale accumulation, and valve sticking. Utilizing a robustly engineered compressed air dryer setup eliminates these operational bottlenecks entirely. Our specialized systems are designed to operate under continuous structural loads, delivering steady dew-point performance even when faced with fluctuating ambient factory temperatures or peak summer heat waves. This consistent performance provides a reliable shield for critical components, protecting heavy pneumatic cylinders, sophisticated automation manifolds, and sensitive diagnostic instruments from water-induced degradation.
High-Velocity Separation with a Moisture Separator India
Integrating a dedicated, internal centrifugal moisture separator India ensures over 99% of bulk condensed liquid is mechanically trapped and expelled, lowering the thermal burden on the cooling circuits.
Continuous Thermal Stability via Non-Cycling Air Dryers
Deploying precision-tuned non-cycling air dryers utilizes a bypass valve arrangement to keep the refrigeration compressor active, maintaining a highly uniform pressure dew point across variable load cycles.
Advanced 3-in-1 Aluminum Heat Exchanger Functionality
Standard separate modular chillers often introduce massive pressure losses into air distribution systems, driving up daily electricity costs. Our heavy-duty configurations employ a space-saving, highly efficient 3-in-1 integrated aluminum block module. This unified setup combines an air-to-air precooler, an air-to-refrigerant evaporator, and a dedicated separator zone into a single compact housing. The outgoing cold air precools the hot incoming air stream, which drastically lowers the power demand on the refrigeration loop while simultaneously reheating the exit air to eliminate sweat-related pipe condensation across your facility floor.
Engineering Advantages of Our Thermal Drying Modules:
- Minimal Static Drop: Optimized internal fluid paths reduce overall static pressure loss to keep system line efficiency high.
- Smart Condensate Controls: Equipped with electronic timed or zero-loss level-sensing drain valves to stop compressed air waste.
- Eco-Shield Refrigerants: Filled exclusively with highly stable R134a or R407C cooling compounds to comply with local environmental standards.
- Robust Steel Frame: Encased in an industrial powder-coated sound-dampening cabinet for reliable long-term durability.
Ganesh Filter Trichy: Global Benchmarks in Industrial Air Cooling
Operating from Tiruchirappalli, Tamil Nadu's industrial manufacturing hub, Ganesh Filter Trichy delivers heavy-duty fluid treatment systems tailored for rugged commercial settings. Our facilities combine extensive structural expertise with severe hydrostatic testing protocols to supply market-proven industrial air cooling machinery. Designed to perform reliably in extreme working environments, our cooling installations provide excellent protection against moisture problems across automotive assembly lines, chemical factories, and sorting plants alike. Connect with our engineering specialists today to configure correct CFM sizing parameters, balance your moisture removal targets, or obtain custom pricing structures for your next machinery expansion.
