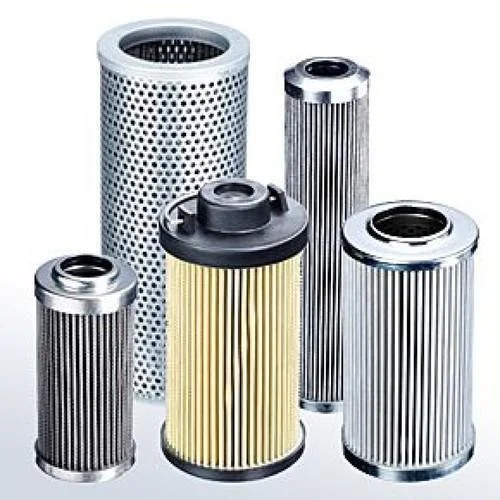

Return Line Filters
Ganesh Filter's Return Line Filters are designed to be mounted on the top of the hydraulic reservoir. They filter the oil as it returns from the system components, capturing wear particles before they enter the tank.
| Technical Feature | Details |
|---|---|
| Design Type | Tank Top / In-line Mounting |
| Micron Rating | 10, 25, or 50 Microns (μ) |
| Flow Rates | Up to 1000 LPM (1 m³/min) |
| Working Temperature | Up to 80°C |
| Working Pressure | Up to 25 bar |
High-efficiency reservoir mounted filtration unit.
Product Benefits
- High Dust Holding: Premium glass fiber media.
- Visual Indicators: Easy maintenance monitoring.
- Easy Element Change: Spill-free replacement.
Key Applications
- Industrial Manufacturing Plants.
- Heavy Earthmoving Equipment.
- Plastic Injection Molding.
Preserving Fluid Cleanliness with a Premium Hydraulic Return Line Filter
In any heavy-duty fluid power system, the return line represents your final opportunity to intercept harmful particulate matter before it gets dumped back into the main oil storage tank. As hydraulic fluid travels through complex cylinders, high-speed motors, and shifting directional valves, it naturally collects mechanical wear debris, microscopic metal shaved fragments, and degraded seal elements. Installing a precision-engineered hydraulic return line filter right at the entrance of your tank structure creates a reliable mechanical barrier. This location effectively isolates and captures up to 99.9% of circulating particulate matter, preventing the costly accumulation of bottom silt within your reservoir.
Why Partnering with an Experienced Tank Top Filter Manufacturer Matters
Return line flows are inherently unstable, often subjected to severe flow surges, sudden exhaust shocks, and rapid air de-entrainment cycles that can tear apart cheaply built filter elements. Working with a dedicated tank top filter manufacturer guarantees that your filtration assemblies are designed to withstand these harsh operating realities. Our specialized housings feature optimized internal geometries that actively reduce fluid velocity and dissipate turbulent kinetic energy before the oil passes through the filter medium. This protective design ensures uniform fluid flow, eliminates element flexing, and prevents premature bypass opening during cold starts or transient peak flows.
Advanced Fluid Maintenance via Hydraulic Filtration India
Implementing robust solutions for hydraulic filtration India helps industrial operations maintain strict ISO 4406 fluid cleanliness standards, significantly extending the service life of expensive downstream pumps.
Space-Saving Design with a Reservoir Return Filter
Mounting a dedicated reservoir return filter directly onto the top plate of the oil tank simplifies piping layouts, saves floor space, and allows for clean, spill-free element replacements.
High-Beta Microglass Media for Demanding Industrial Environments
Surface-level paper elements easily clog and collapse under the pressure spikes common in modern manufacturing environments. Our heavy-duty industrial hydraulic filters utilize multi-layered, inorganic fiberglass media. This sophisticated material features a progressive pore structure that traps larger particles on the outer surface while capturing finer silt within the deep inner layers. This advanced depth-filtration technology offers exceptionally high dirt-holding capacity and a stable beta ratio ($\beta_x \ge 200$), ensuring your hydraulic oil remains clear of performance-robbing contaminants across extended production schedules.
Key Structural Features of Our Tank-Top Assemblies:
- Integrated Bypass Valves: Built-in safety relief mechanisms protect the filter core from bursting during high-viscosity cold starts.
- Differential Clogging Sensors: Fitted with precise visual gauges or electrical indicators to alert maintenance teams before bypass occurs.
- Submerged Down-Tubes: Extended exhaust pipes discharge fluid safely beneath the minimum oil level to stop fluid aeration and foaming.
- Corrosion-Resistant Bowls: Lightweight, high-strength aluminum top heads and impact-resistant bowls provide reliable long-term durability.
Ganesh Filter Trichy: India’s Trusted Source for Hydraulic Excellence
Based in Tiruchirappalli, Tamil Nadu, Ganesh Filter Trichy engineers world-class fluid separation and filtration systems designed for heavy industrial machinery. Every tank top filtration assembly we build undergoes strict hydrostatic pressure testing and quality control inspections to ensure absolute reliability in the field. Whether you need a standard low-pressure return filter for plastic injection molding machines or a custom multi-port configuration for massive earthmoving reservoirs, our engineering team delivers high-performance solutions that keep your systems running smoothly. Contact our technical desk today to choose the ideal micron rating, review pressure drop ($\Delta P$) curves, or request an official commercial quotation.
