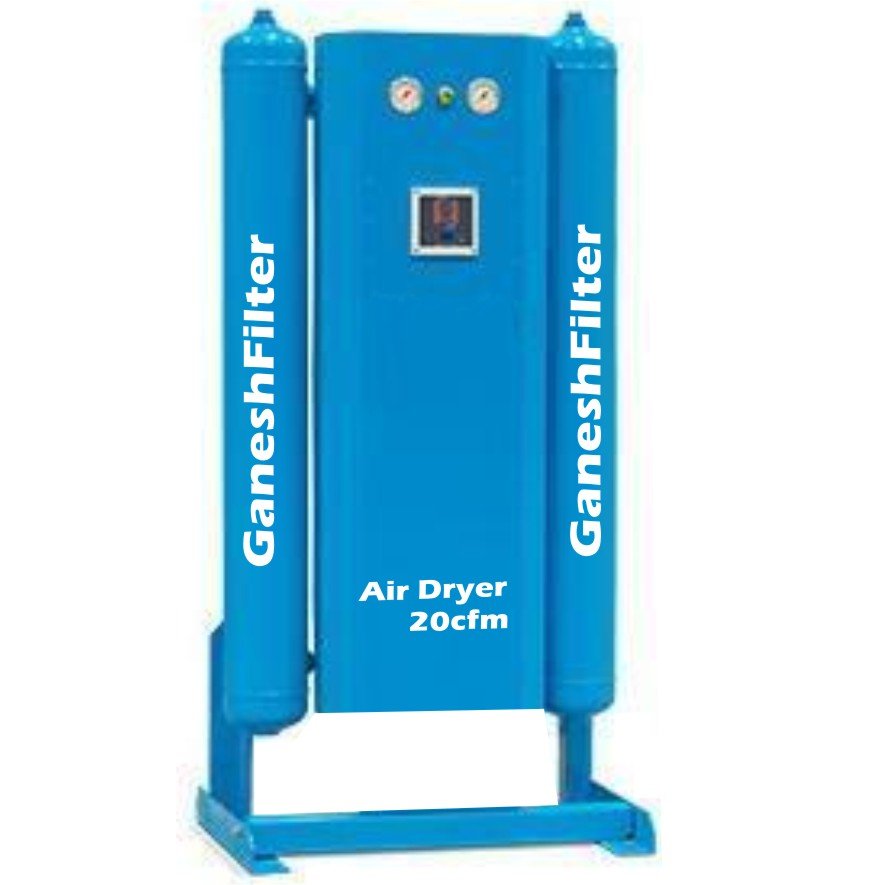

Compact air dryer
Desiccant dryers in the DC series can lower the pressure dew point of the compressed air to -70 ℃. They combine reliable system design, high energy efficiency and extremely low maintenance costs.The dryer is timed to switch towers based on a standard NEMA cycle.
This is a heatless dryer of the pressure reduction self-regenerating system which does not use heat for regeneration of the desiccant. Stable supply of ultra dry air provides dependable frost protection for your control valves and lines while producing dry compressed air for sensitive processes at minimal cost.
Features
- Reliability - All components of the bag filter housing are fully traceable. At Ganeshfilter, we can also tailor it to your specifications. The filter vessels are designed and manufactured following the Directive 2006/42/EC and in compliance with the EC standard.
- High-performance filtration - The path through which the fluid groes has been designed to be the shortest, facilitating cleaning. There is a wide variety of high-performance filter bags (ranging from less than one micron to several hundred microns) and the design of the filter vessel guarantees perfect sealing with the filter bags.
- Convenient and simple - The filter housing is designed to be easy-to-use. The tilting covers allow the filter bags to be changed quickly. The tripods are compact and ensure the stability of the filter vessel.
- Economical technology - Without automation and moving parts, the bag filter housing is cost-effective and economical to purchase. When compared to the flow rate, the use of a bag is often trivial compared to the volume of product filtered in the process. The bag filter is undeniably the simplest customizable filter on the market.
- Standard and custom filters - Ganeshfilter manufactures two types of bag filter housings. First, the standard vessels, which are produced in large quantities according to Ganeshfilter specifications. These vessels are not customizable but can be purchased at competitive prices. Secondly, the filter vessels tailored to our customer specifications. These filter housings are manufactured individually or in small series and the full list of options (detailed below) is possible.
Compact air dryer
| MODEL | Flow rate | End Conn. | Dimensions in mm | Weight | ||
|---|---|---|---|---|---|---|
| SCFM | In / Out | Height | Width | Depth | Kg | |
| GFCD 5 | 5 | 1/2" | 585 | 300 | 120 | 10 |
| GFCD 10 | 10 | 1/2" | 750 | 300 | 120 | 13 |
| GFCD 20 | 20 | 1/2" | 1025 | 300 | 200 | 18 |
| GFCD 30 | 30 | 1/2" | 940 | 533 | 200 | 30 |
| GFCD 45 | 45 | 1/2" | 1075 | 533 | 200 | 36 |
| GFCD 60 | 60 | 3/4" | 1225 | 533 | 200 | 58 |
| GFCD 100 | 100 | 1" | 1225 | 533 | 200 | 71 |
| Operating Conditions | ||||||
| Normal | Maximum | |||||
| Working Pressure | 7 to 12.5 Bar | 16 Bar | ||||
| Inlet Temperature | 45°C | 60°C | ||||
| Dew Point | -40°C | -60°C | ||||
| Above flow rates are at 7 Bar,35 ℃,Standard Power supply 220V, 50Hz. Optional 12V DC, 24V DC available on request. | ||||||
| Usage/Application: | ◼ Instrument and Control Air ◼Process Control Instruments ◼ Textile Machines◼Machine tools ◼ Bearing air ◼ Air Motors and Heavy Air motor ◼ miniature◼Packaging machine ◼ Pneumatic cylinder ◼ Sensors in fluid technology ◼ Sand blasting unit ◼ Handling of food and beverages ◼ Semi conductor manufacturing ◼ Wind tunnels◼Pharmaceutical manufacturing ◼ Conveyance of hygroscopic products ◼ Paint spray and Powder coating | |||||
