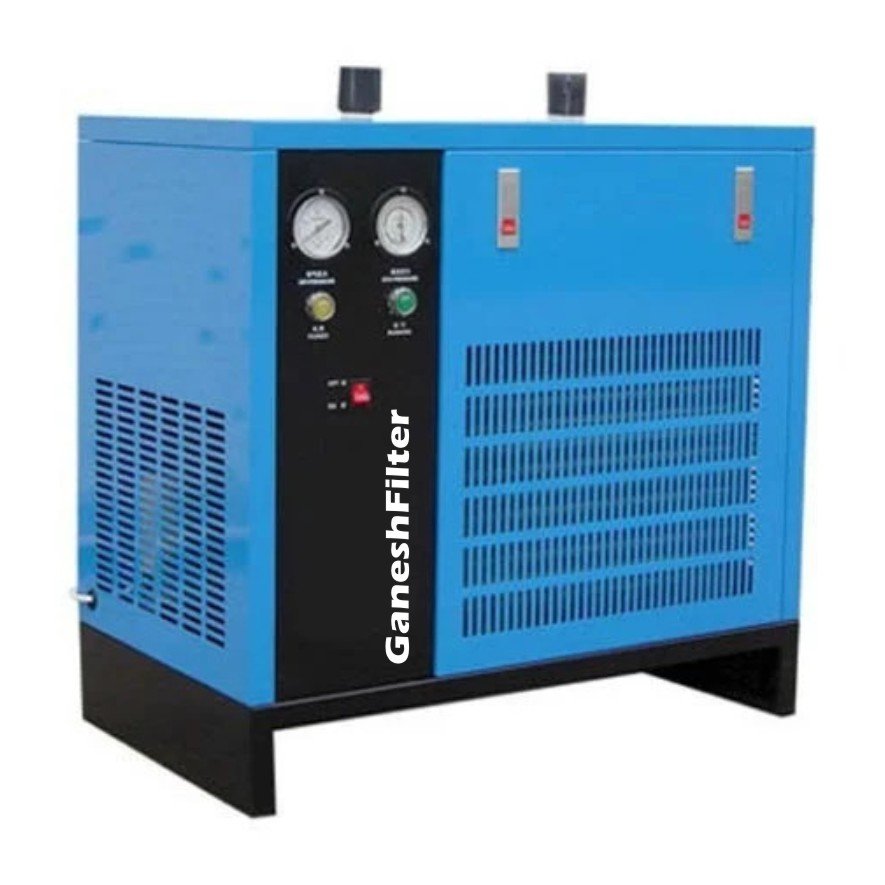

Refrigerated air dryer

Refrigeration dryers employ two heat exchangers, one for air-to-air and one for air-to-refrigeration. However, there is also a single Trisab heat exchanger that combines both functions. The compressors used in this type of dryer are usually of the hermetic type and the most common gas used is R-134a. The goal of having two heat exchangers is that the cold outgoing air cools down the hot incoming air and reduces the size of compressor required. At the same time the increase in the temperature of outgoing air prevents re-condensation.

Commonly a coalesing prefilter is installed immediately upstream of a refrigerated dryer to remove lubricating oil and other contaminants that have the potential to foul the dryer's heat exchangers.

Features

  • Reliability - All components of the bag filter housing are fully traceable. At Ganeshfilter, we can also tailor it to your specifications. The filter vessels are designed and manufactured following the Directive 2006/42/EC and in compliance with the EC standard.
  • High-performance filtration - The path through which the fluid groes has been designed to be the shortest, facilitating cleaning. There is a wide variety of high-performance filter bags (ranging from less than one micron to several hundred microns) and the design of the filter vessel guarantees perfect sealing with the filter bags.
  • Convenient and simple - The filter housing is designed to be easy-to-use. The tilting covers allow the filter bags to be changed quickly. The tripods are compact and ensure the stability of the filter vessel.
  • Economical technology - Without automation and moving parts, the bag filter housing is cost-effective and economical to purchase. When compared to the flow rate, the use of a bag is often trivial compared to the volume of product filtered in the process. The bag filter is undeniably the simplest customizable filter on the market.
  • Standard and custom filters - Ganeshfilter manufactures two types of bag filter housings. First, the standard vessels, which are produced in large quantities according to Ganeshfilter specifications. These vessels are not customizable but can be purchased at competitive prices. Secondly, the filter vessels tailored to our customer specifications. These filter housings are manufactured individually or in small series and the full list of options (detailed below) is possible.

Refrigerated air dryer

MODEL Flow rate End Conn. Dimensions in mm Weight
M3/Hr SCFM In / Out Height Width Depth Kg
GRD-20 20 12 1/2" 460 590 550 38
GRD-32 32 19 1/2" 460 590 550 40
GRD-51 51 30 3/4" 460 590 550 43
GRD-54 54 32 3/4" 460 590 550 38
GRD-105 105 62 3/4" 460 590 550 40
GRD-135 135 79 1" 460 590 550 43
GRD-180 180 106 1" 595 690 680 61
GRD-250 250 147 1" 595 860 860 81
GRD-300 300 177 1 1/4" 595 860 860 96
GRD-360 360 212 1 1/2" 595 860 860 109
GRD-450 450 265 2" 595 860 860 114
GRD-588 588 346 2" 630 1200 960 216
GRD-708 708 417 2" 630 1200 960 225
GRD-828 828 487 2 1/2" 870 1710 1200 248
GRD-1008 1008 593 2 1/2" 870 1710 1200 298
GRD-1260 1260 742 2 1/2" 870 1710 1200 327
GRD-1560 1560 918 NB 80 870 1710 1200 375
GRD-1890 1890 1112 NB 80 870 1710 1200 460
GRD-2520 2520 1483 NB 100 1050 1810 1450 525
GRD-3090 3090 1819 NB 100 1050 1810 1450 585
GRD-3630 3530 2137 NB 100 1450 2050 1650 690
Operating Conditions
Normal Maximum
Working Pressure 7 to 12.5 Bar 16 Bar
Inlet Temperature 25°C 55°C
Dew Point -3°C -10 °C
Above flow rates are at 7 Bar,35 ℃,Standard Power supply ; Model GRD20 to 708 220V/1Ph,50Hz and GRD828 to 3660 440V/3Ph,50Hz.
Usage/Application: ◼ Instrument and Control Air ◼Process Control Instruments ◼ Textile Machines◼Machine tools ◼ Bearing air ◼ Air Motors and Heavy Air motor ◼ miniature◼Packaging machine ◼ Pneumatic cylinder ◼ Sensors in fluid technology ◼ Sand blasting unit ◼ Handling of food and beverages ◼ Semi conductor manufacturing ◼ Wind tunnels◼Pharmaceutical manufacturing ◼ Conveyance of hygroscopic products ◼ Paint spray and Powder coating
