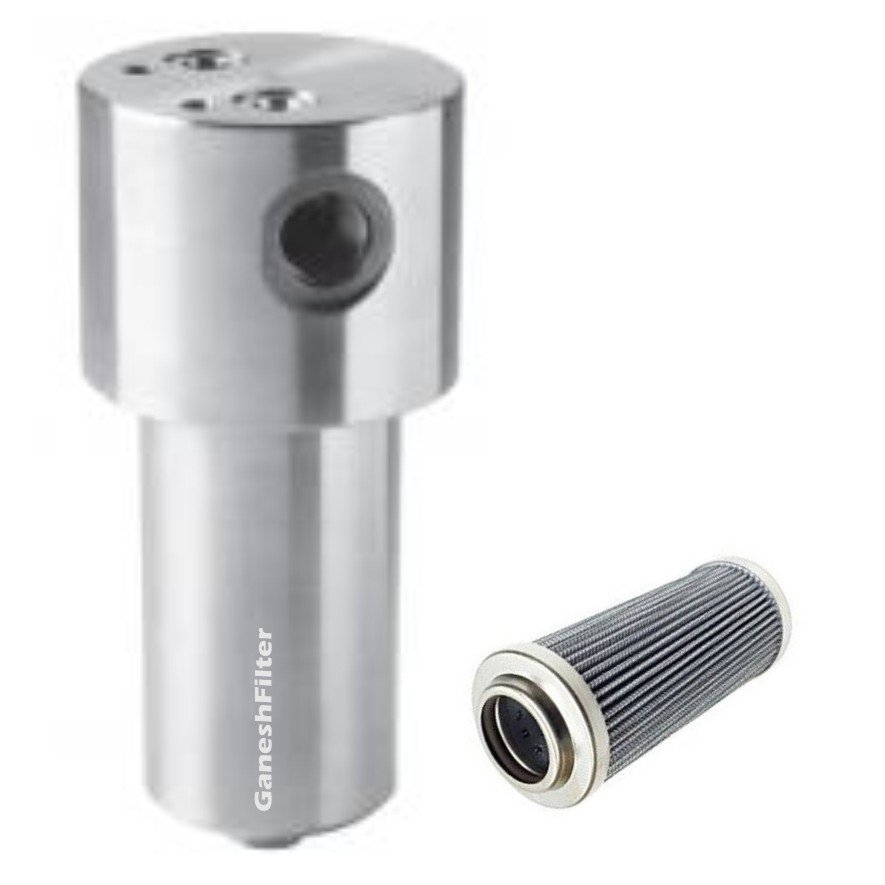

High pressure filter
high pressure air filters can filter the compressed air in high pressure air system.And they are mainly used in a variety of air systems which may go with air compressor, air pump, etc . High pressure filters are available from 30 m3/hr to 725 m3/hr.The material of construction Aluminium,Carbon steel or Strainless steel.Pressure ranges from 25 Bar to 400 Bar with different element combination and applications.
Our High Pressure Filters are manufactured for a broad range of high pressure applications, and are used in PET bottle manufacturing, offshore instrumentation, medical applications, in addition to other heavy industrial environments.
Features
- Reliability - All components of the bag filter housing are fully traceable. At Ganeshfilter, we can also tailor it to your specifications. The filter vessels are designed and manufactured following the Directive 2006/42/EC and in compliance with the EC standard.
- High-performance filtration - The path through which the fluid groes has been designed to be the shortest, facilitating cleaning. There is a wide variety of high-performance filter bags (ranging from less than one micron to several hundred microns) and the design of the filter vessel guarantees perfect sealing with the filter bags.
- Convenient and simple - The filter housing is designed to be easy-to-use. The tilting covers allow the filter bags to be changed quickly. The tripods are compact and ensure the stability of the filter vessel.
- Economical technology - Without automation and moving parts, the bag filter housing is cost-effective and economical to purchase. When compared to the flow rate, the use of a bag is often trivial compared to the volume of product filtered in the process. The bag filter is undeniably the simplest customizable filter on the market.
- Standard and custom filters - Ganeshfilter manufactures two types of bag filter housings. First, the standard vessels, which are produced in large quantities according to Ganeshfilter specifications. These vessels are not customizable but can be purchased at competitive prices. Secondly, the filter vessels tailored to our customer specifications. These filter housings are manufactured individually or in small series and the full list of options (detailed below) is possible.
High pressure filter
| MODEL | Flow rate | End Conn. | Dimensions in mm | weight | |
|---|---|---|---|---|---|
| Nm3/Hr | In / Out | Height | Width | ( Kg ) | |
| Series GPF | ( Available Pressure rating from 25 Bar to 64 Bar ) | ||||
| GPF10 | 30 | 1/4" | 185 | 90 | 4 |
| GPF20 | 60 | 3/8" | 185 | 90 | 4 |
| GPF30 | 120 | 1/2" | 225 | 108 | 8.2 |
| GPF40 | 175 | 3/4" | 255 | 108 | 8.4 |
| GPF50 | 275 | 1" | 275 | 122 | 14 |
| GPF60 | 370 | 1 1/4" | 310 | 122 | 14.5 |
| GPF70 | 485 | 1 1/2" | 340 | 153 | 24 |
| GPF80 | 725 | 2" | 425 | 195 | 52 |
| Series - GHF | ( Available Pressure rating from 100 Bar to 400 Bar ) | ||||
| GHF10 | 30 | 1/4" | 185 | 90 | 5.5 |
| GHF20 | 60 | 3/8" | 185 | 90 | 5.5 |
| GHF30 | 120 | 1/2" | 225 | 108 | 9.6 |
| GHF40 | 175 | 3/4" | 255 | 108 | 10 |
| GHF50 | 275 | 1" | 275 | 122 | 16 |
| GHF60 | 370 | 1 1/4" | 310 | 122 | 17 |
| GHF70 | 485 | 1 1/2" | 340 | 153 | 29 |
| GHF80 | 725 | 2" | 425 | 195 | 64 |
| Operating Conditions | |||||
| Normal | Maximum | ||||
| Working Pressure | 25 to 400 Bar | 400 Bar | |||
| Inlet Temperature | 25°C | 80°C | |||
| High Pressure Filters are available in Stainless Steel,Carbon Steel and Aluminium on Request | |||||
| Usage/Application: | ◼ High pressure applications ◼ PET bottle manufacturing ◼ Offshore instrumentation ◼ Medical applications ◼ Other heavy industrial environments ◼ Air Motors and Heavy Air motor miniature ◼ Packaging machine ◼ Pneumatic cylinder | ||||
