Pre filter

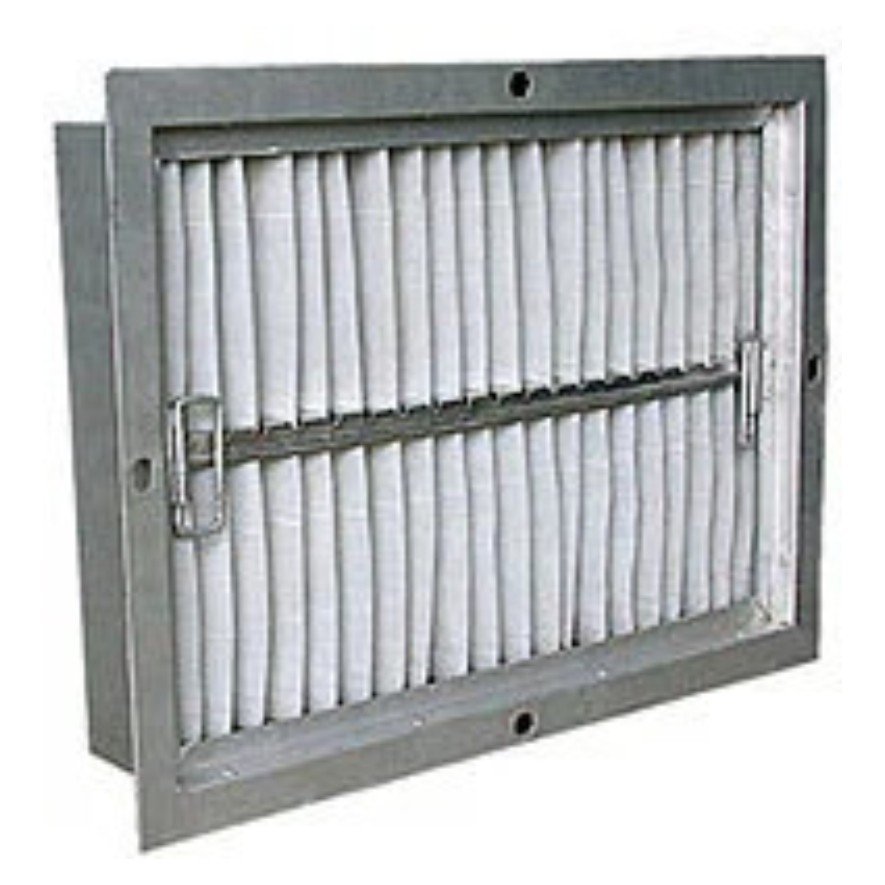

Pre filter with a frame made of galvanized sheet for coarse filtration in mechanical ventilation, recuperation and air conditioning units.
The M5 Iso Corase 90% pleated cassette filter allows you to capture 90% of coarse particles from the air, i.e. leaves, insects, hair, sand, ash, fine sand, plant spores, pollen and other impurities larger than 10 Micron.
It is included in the coarse filtration pre-filters,thus this filter allows for basic air filtration in mechanical ventilation systems with heat recovery, called recuperation. Our filters are made of materials that meet high energy classes to ensure the lowest possible consumption of electricity by your recuperator.
Features
- Reliability - All components of the bag filter housing are fully traceable. At Ganeshfilter, we can also tailor it to your specifications. The filter vessels are designed and manufactured following the Directive 2006/42/EC and in compliance with the EC standard.
- High-performance filtration - The path through which the fluid groes has been designed to be the shortest, facilitating cleaning. There is a wide variety of high-performance filter bags (ranging from less than one micron to several hundred microns) and the design of the filter vessel guarantees perfect sealing with the filter bags.
- Convenient and simple - The filter housing is designed to be easy-to-use. The tilting covers allow the filter bags to be changed quickly. The tripods are compact and ensure the stability of the filter vessel.
- Economical technology - Without automation and moving parts, the bag filter housing is cost-effective and economical to purchase. When compared to the flow rate, the use of a bag is often trivial compared to the volume of product filtered in the process. The bag filter is undeniably the simplest customizable filter on the market.
- Standard and custom filters - Ganeshfilter manufactures two types of bag filter housings. First, the standard vessels, which are produced in large quantities according to Ganeshfilter specifications. These vessels are not customizable but can be purchased at competitive prices. Secondly, the filter vessels tailored to our customer specifications. These filter housings are manufactured individually or in small series and the full list of options (detailed below) is possible.
Pre filter
| Pleated Filter - BP Series - 2" Thickness | |||
|---|---|---|---|
| MODEL | Dimensions | ||
| Sizes in Inches | Actual Size in mm | Flow in M3/Hr | |
| BP-25025050 | 10 x 10 | 242 x 242 | 504 |
| BP-30030050 | 12 x 12 | 289 x 289 | 720 |
| BP-37537550 | 15 x 15 | 369 x 369 | 1188 |
| BP-45045050 | 18 x 18 | 445 x 445 | 1728 |
| BP-50025050 | 20 x 10 | 495 x 242 | 1045 |
| BP-50040050 | 20 x 16 | 495 x 394 | 1728 |
| BP-50050050 | 20 x 20 | 495 x 495 | 2160 |
| BP-62540050 | 25 x 16 | 620 x 394 | 2160 |
| BP-62550050 | 25 x 20 | 620 x 495 | 2736 |
| BP-60030050 | 24 x 12 | 594 x 289 | 1550 |
| BP-60050050 | 24 x 20 | 594 x 495 | 2628 |
| BP-60060050 | 24 x 24 | 594 x 594 | 3200 |
| Pleated Filter - BP Series - 4" Thickness | |||
| BP-250250100 | 10 x 10 | 242 x 242 | 648 |
| BP-300300100 | 12 x 12 | 289 x 289 | 900 |
| BP-375375100 | 15 x 15 | 369 x 369 | 1500 |
| BP-450450100 | 18 x 18 | 445 x 445 | 2160 |
| BP-500250100 | 20 x 10 | 495 x 242 | 1300 |
| BP-500400100 | 20 x 16 | 495 x 394 | 2088 |
| BP-500500100 | 20 x 20 | 495 x 495 | 2628 |
| BP-625400100 | 25 x 16 | 620 x 394 | 2600 |
| BP-625500100 | 25 x 20 | 620 x 495 | 3275 |
| BP-600300100 | 24 x 12 | 594 x 289 | 1840 |
| BP-600500100 | 24 x 20 | 594 x 495 | 3125 |
| BP-600600100 | 24 x 24 | 594 x 594 | 3780 |
| Metal Washable Filter - BW Series - 1" Thickness | |||
| BW-25025025 | 10 x 10 | 242 x 242 | 440 |
| BW-30030025 | 12 x 12 | 289 x 289 | 612 |
| BW-37537525 | 15 x 15 | 369 x 369 | 972 |
| BW-45045025 | 18 x 18 | 445 x 445 | 1450 |
| BW-50025025 | 20 x 10 | 495 x 242 | 900 |
| BW-50040025 | 20 x 16 | 495 x 394 | 1450 |
| BW-50050025 | 20 x 20 | 495 x 495 | 1800 |
| BW-62540025 | 25 x 16 | 620 x 394 | 2000 |
| BW-62550025 | 25 x 20 | 620 x 495 | 2270 |
| BW-60030025 | 24 x 12 | 594 x 289 | 1224 |
| BW-60050025 | 24 x 20 | 594 x 495 | 2125 |
| BW-60060025 | 24 x 24 | 594 x 594 | 2600 |
| Metal Washable Filter - BW Series - 2" Thickness | |||
| BW-25025050 | 10 x 10 | 242 x 242 | 440 |
| BW-30030050 | 12 x 12 | 289 x 289 | 612 |
| BW-37537550 | 15 x 15 | 369 x 369 | 972 |
| BW-45045050 | 18 x 18 | 445 x 445 | 1450 |
| BW-50025050 | 20 x 10 | 495 x 242 | 900 |
| BW-50040050 | 20 x 16 | 495 x 394 | 1450 |
| BW-50050050 | 20 x 20 | 495 x 495 | 1800 |
| BW-62540050 | 25 x 16 | 620 x 394 | 2000 |
| BW-62550050 | 25 x 20 | 620 x 495 | 2270 |
| BW-60030050 | 24 x 12 | 594 x 289 | 1224 |
| BW-60050050 | 24 x 20 | 594 x 495 | 2125 |
| BW-60060050 | 24 x 24 | 594 x 594 | 2600 |
| BP-Series | Clasifications : G4 to EN779 | ||
| Opp.Temp :100 ℃ | |||
| PD at clean : 20 Pa 75 Pa ** | |||
| BP-Series | Clasifications : G2 to EN779 | ||
| Opp.Temp :100 ℃ | |||
| PD at clean : 8 Pa to 25 Pa ** | |||
| Usage/Application: | ◼ Pre-treatment filter in air conditioning ◼heating and ventilation installations ◼Filters characterized by high efficiency with low pressure drops ◼They can be used in schools ◼offices ◼tetras ◼swimming pools ◼hospitals ◼shopping malls ◼ hotels ◼homes ◼paint shops ◼ food and pharmaceutical industries ◼machine industries ◼ Conveyance of hygroscopic products ◼ Paint spray and Powder coating | ||
