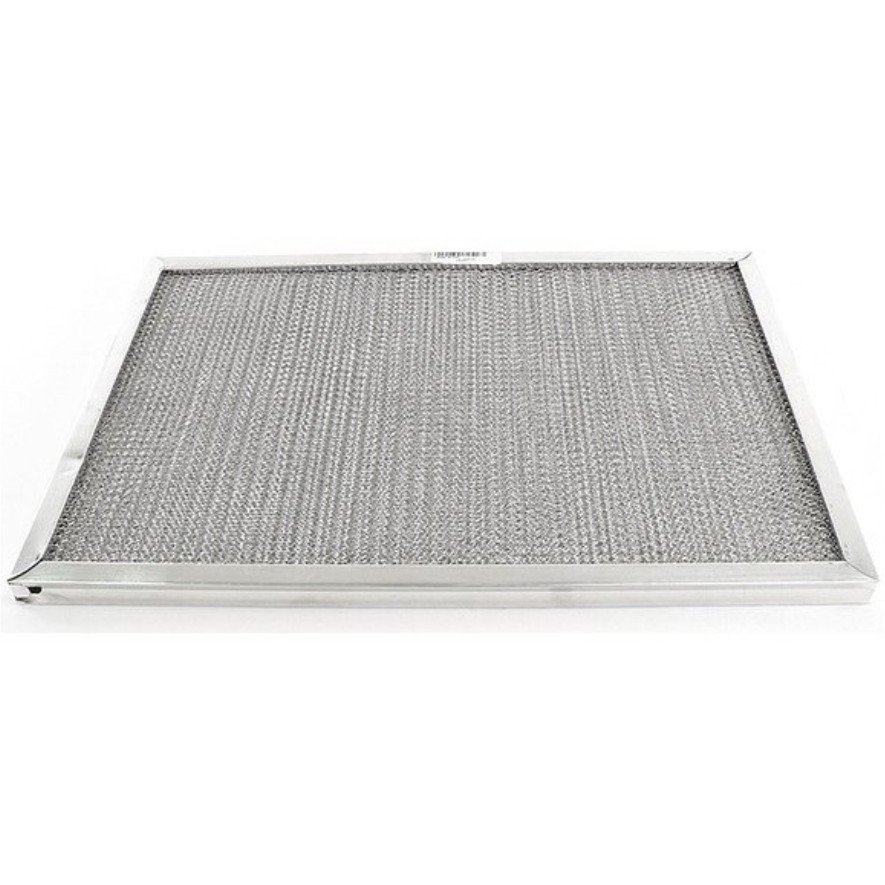

Stainless steel filter
The 304 Stainless Steel Filter is the heaviest mesh filter available and is designed for applications that require the utmost in filterability. Made from 304 stainless steel, this filter can hold up to the toughest conditions, in air applications. It can withstand harsh chemicals when it comes to cleaning.
The 304 Stainless Steel Filter is the heaviest mesh filter available. Made from 304 stainless steel, this filter can hold up to the toughest conditions, in both air and grease applications. The frame is made of heavy 304 stainless steel. It can withstand harsh chemicals when it comes to cleaning. The 304 Stainless Steel Filter is designed for applications that require the utmost in filterability. Stainless steel will withstand extreme heat conditions. The maximum temperature range on the 304 Stainless Steel Filter is 900 degrees F.
Features
- Reliability - All components of the bag filter housing are fully traceable. At Ganeshfilter, we can also tailor it to your specifications. The filter vessels are designed and manufactured following the Directive 2006/42/EC and in compliance with the EC standard.
- High-performance filtration - The path through which the fluid groes has been designed to be the shortest, facilitating cleaning. There is a wide variety of high-performance filter bags (ranging from less than one micron to several hundred microns) and the design of the filter vessel guarantees perfect sealing with the filter bags.
- Convenient and simple - The filter housing is designed to be easy-to-use. The tilting covers allow the filter bags to be changed quickly. The tripods are compact and ensure the stability of the filter vessel.
- Economical technology - Without automation and moving parts, the bag filter housing is cost-effective and economical to purchase. When compared to the flow rate, the use of a bag is often trivial compared to the volume of product filtered in the process. The bag filter is undeniably the simplest customizable filter on the market.
- Standard and custom filters - Ganeshfilter manufactures two types of bag filter housings. First, the standard vessels, which are produced in large quantities according to Ganeshfilter specifications. These vessels are not customizable but can be purchased at competitive prices. Secondly, the filter vessels tailored to our customer specifications. These filter housings are manufactured individually or in small series and the full list of options (detailed below) is possible.
Stainless steel filter
| MODEL | Dimensions in Inches | Packs | Air Flow | Resis(Pa) | Efficiency | Dust Hold | |||
|---|---|---|---|---|---|---|---|---|---|
| H | W | D | M3/Hr | Initial | Final | Ashrae | Grams | ||
| B-001 | 16 | 20 | 1 | 3 | 1400 | 50 | 250-300 | 95% | 400 |
| B-002 | 16 | 25 | 1 | 3 | 1400 | 65 | 250-300 | 95% | 350 |
| B-003 | 20 | 20 | 1 | 3 | 1400 | 80 | 300-400 | 95% | 320 |
| B-004 | 20 | 25 | 1 | 3 | 1400 | 105 | 300-400 | 95% | 270 |
| B-005 | 24 | 24 | 1 | 3 | 1400 | 120 | 400-450 | 95% | 250 |
| B-006 | 10 | 20 | 2 | 3 | 1550 | 50 | 250-300 | 95% | 460 |
| B-007 | 12 | 24 | 2 | 3 | 1550 | 65 | 250-300 | 95% | 410 |
| B-008 | 16 | 20 | 2 | 3 | 1550 | 80 | 300-400 | 95% | 360 |
| B-009 | 16 | 25 | 2 | 3 | 1550 | 105 | 300-400 | 95% | 310 |
| B-010 | 16 | 25 | 2 | 3 | 1550 | 120 | 400-450 | 95% | 280 |
| B-011 | 20 | 20 | 2 | 5 | 2300 | 50 | 250-300 | 95% | 690 |
| B-012 | 20 | 20 | 2 | 5 | 2300 | 65 | 250-300 | 95% | 610 |
| B-013 | 20 | 25 | 2 | 5 | 2300 | 80 | 300-400 | 95% | 540 |
| B-014 | 24 | 24 | 2 | 5 | 2300 | 105 | 300-400 | 95% | 460 |
Stainless steel filter
| Usage/Application: | ◼ Pre-treatment filter in air conditioning ◼heating and ventilation installations ◼Filters characterized by high efficiency with low pressure drops ◼They can be used in schools ◼offices ◼tetras ◼swimming pools ◼hospitals ◼shopping malls ◼ hotels ◼homes ◼paint shops ◼ food and pharmaceutical industries ◼machine industries ◼ Conveyance of hygroscopic products ◼ Paint spray and Powder coating |
